Project Aria Research Kit Release Notes

These SW Release notes are for the Aria Research Kit (ARK), and are for Meta SW that supports Academic Research Partners using Project Aria glasses. To find out how to become a research partner, go to projectaria.com.

Our Open Source Project Aria Tools SW Release notes are posted to Project Aria Tools GitHub repository, using Tags > Releases.

Aria Mobile App v165 is now available

Dear Academic Partners,

The Aria Mobile App v165 is now available. Go to the Downloads page to get the latest version for Android. For iOS, select Update in the TestFlight app. Please update the app to access the following features and bug fixes.

Project Aria recently released Project Aria Eye Tracking, an open source inference code for the Pre March 2024 Eye Gaze Model used by MPS. This model:

  • Provides the ability to generate eye gaze data using the old model, if that is more suited to your research use case or if you’re not able to request MPS
  • This code can be used on downloaded data or when streaming data using the Aria Client SDK

BUG FIXES

Various bug fixes to improve the overall usage.

PROJECT ARIA LATEST OS

The latest Project Aria OS build 4968951.840.70 (April 25th, 2024).

QUESTIONS, CONCERNS, FEEDBACK?

Go to our Support page for ways to get in touch.


Announcing: New Custom Recording Profile Capabilities

We’re pleased to announce that Aria Mobile Companion app v160 contains the ability to configure individual sensors when creating custom recordings using the Mobile Companion app.

How to access the update

You’ll be prompted to update the app when you open it, and you can also manually download it.

You’ll need Aria OS version 4968999.0.70 (April 25th, 2024) or later to be able to set custom recording profiles.

Custom Recording Profile

To keep the new Custom Recording Profile feature approachable, and to reduce our testing matrix, we are launching this feature with a limited set of parameters. If people find the feature useful, we are open to unblocking research needs by providing the ability to include additional parameters. Please use one of our support channels to make feature requests.

To start a recording with a custom recording profile:

  1. In the Aria app Dashboard, select New Recording Session
  2. Select Recording Profile
  3. The first recording profile in the list will be Custom Profile
    • You may need to scroll up to see this option
  4. Select the Custom Profile
  5. Select Edit parameters
  6. Adjust sensor settings 2. Certain combinations, such as RGB Cameras at 2880 x 2880 at 15 or more fps will trigger warnings as they cause elevated thermal loads and reduced battery life 3. Tap More info on the Recording Profiles Tab to see more details, such as auto exposure

Bug Fixes

  • An issue where the More info link on the top right of the Recording Profiles page was difficult to see has been resolved.

Known issues

  • Custom Recordings is a new feature! If you encounter data quality issues, please help us track down the issue by emailing the repro steps (including sensor configuration) to AriaOps@meta.com.

QUESTIONS, CONCERNS, FEEDBACK?

Go to our Support page for ways to get in touch.


Announcing New MPS, Recording Profiles, and Updates to the Companion Apps

March 21 2024

Dear Academic Partners,

This release includes new Machine Perception Services (MPS) capabilities, Wrist and Palm Tracking data and a revised Eye Gaze model that provides depth estimations, as well as four new recording profiles, and an Automatic Speech Recognition speech to text code sample.

How to access the new features

  • MPS
    • NEW SERVICE: Hand Tracking
      • Request Hand Tracking via the MPS CLI or Desktop app to get Wrist and Palm Tracking data!
    • UPDATED SERVICE: The new Eye Gaze model includes depth estimations
      • Backwards compatibility with Project Aria Tools will be maintained for data generated using the old model
    • Use the MPS CLI to do bulk requests on existing data
      • Raw uploaded data will now be stored for 30 days for MPS processing and reprocessing
  • Desktop app v38 [MacOS and Windows]
    • Download the latest version of the app for the ability to request Hand Tracking MPS via Desktop app, and to get bug fixes
  • Project Aria Tools v1.5
    • New code sample that generates speech to text outputs from VRS files
    • Install via Pip to be able to request Hand Tracking data using the MPS CLI
  • Aria glasses OS 4968297.250.70
    • Update to the latest OS for four new recording profiles and essential bug fixes
    • Please make sure your glasses have been updated in the last two months
  • Aria Mobile Companion App v155
    • Download the latest version of the app to enjoy the updated look and bug fixes
  • Documentation

MPS Updates

Once you upload data using the MPS CLI, it will be stored for 30 days for additional processing/reprocessing, instead of 24 hours.

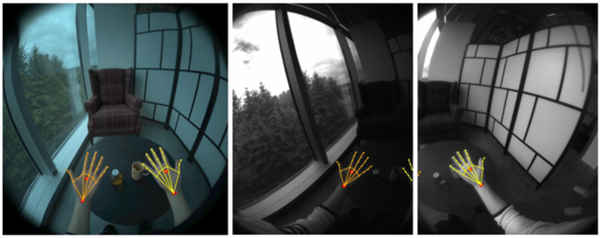

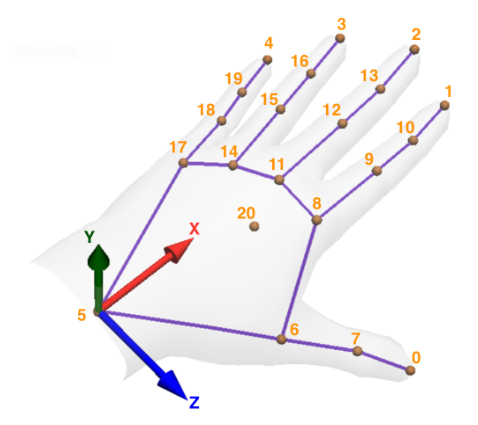

New Hand Tracking MPS, Wrist and Palm Tracking

For this new service, we use Aria's SLAM camera images to estimate the hand movements of the wearer. The wrist and palm poses are given in the device frame in meters. These outputs are automatically generated when doing the default MPS CLI request (or request hand_tracking mode) and are listed as Hand Tracking in the Desktop App.

Install Project Aria Tools vs 1.5 using Pip or install Desktop App v38 to be able to request this new service.

Update to Eye Gaze outputs - depth estimations

We have introduced a new model for computing eye gaze, which produces left and right eye gaze directions along with the depth at which these gaze directions intersect.

This new model’s output schema adds to general_eye_gaze.csv and personalized_eye_gaze.csv in a way that ensures backward compatibility with Project Aria Tools.

Known Issues

  • The new Eye Gaze model does not generate yaw_rads_cpf outputs
    • This value can be computed using helper functions and is automatically read when parsed with our data utilities.

Bug Fixes

Minor bug fixes

Desktop Companion App v38

Download v38 on Windows or MacOS to request Hand Tracking MPS and to get bug fixes.

MPS requests using the Desktop app have been slightly restructured, you no longer need to request Point Cloud data as an additional service. The request options are:

  • SLAM (6DoF Trajectory, Semi-Dense Point Cloud, Online Sensor Calibration)
  • Eye Gaze (General, plus personalized if the VRS file contains In-Session Eye Gaze Calibration)
  • Hand Tracking (Wrist and Palm Tracking)

The Streaming button in the dashboard has been renamed to Preview, to better reflect the capability provided by the Desktop app. Use the Client SDK with CLI to stream data.

Desktop app logs are now stored in ~/.aria/logs/ariadesktop_app{date}_{time}.log

  • Please note, the streaming preview available through the Desktop app is optimized for Profile 12.

Known Issues

  • If you encounter the file too small error when requesting MPS, it may be because the Desktop app is in a bad state. Restarting the app should resolve this issue
  • Selecting Cancel does not work when downloading MPS is in progress
  • [MacOS] When the app is launched with logging enabled, the Aria icon might not appear in the taskbar, but functions should not be impacted
  • [Windows] The Aria icon does not render correctly when pinned to the taskbar

Bug Fixes

  • If starting recording/streaming fails the UI will now refresh
  • Issue where you can’t request MPS unless you interact with tick boxes has been resolved
  • Issue where the Desktop app did not quit completely on MacOS has been resolved

Project Aria Tools v1.5

Project Aria Tools provides open tooling for anyone wanting to work with Aria data. For this release it enables users to request Hand Tracking data using the MPS CLI and provides a new ASR Python code sample.

Update Project Aria Tools:

Go to https://github.com/facebookresearch/projectaria_tools/releases/tag/1.5.0 for the full release log.

Speech to Text Code Sample (Python)

This new ASR Python code sample shows how to use Faster Whisper to run Whisper Speech Recognition on an Aria audio stream. The ASR outputs are time aligned with Aria Device Time.

Go to the Automated Speech Recognition Readme for how to get started.

Speech to Text outputs

Aria Glasses OS

The latest Project Aria OS build 4968297.250.70 was released on March 11, 2024.

New recording profiles

We’ve released the following experimental recording profiles. If you use a new profile, we’d love to hear about how it works for you.

Recording Profile 26: Minimal sensors, low RGB frame rate for extended recording times. The aim is 5+ recording hours while having RGB camera data at a low frame rate (unlike Recording Profile 20, which has IMU, but no RGB data).

Recording Profile 27: Designed for streaming over USB.

Recording Profile 28: Very high Eye Tracking camera frame rate.

Recording Profile 29: Low RGB frame rate, JPEG with decimation. This recording profile is the same as Profile 26, however 9 out of every 10 JPEG frames are skipped (decimation/sub-sampling). This is our first recording profile that uses decimation. The data from the RGB data stream is saved at a rate that archives a frame rate of 0.1FPS. The aim of this profile is to be able to record for 15+ hours.

Update to the latest version of the OS to access these profiles. Your glasses’ OS should automatically update when connected to Wi-Fi and power. Go to Updating OS to manually trigger an update.

You can see more details about recording profiles in the Mobile Companion app:

  1. Open the Mobile Companion App and select New Recording Session
  2. Select the existing recording profile (or Choose Profile if you have not set a default recording profile)
  3. Tap More Info in the top right corner
    • The More info link may be difficult to see, this will be fixed in a future version of the Mobile Companion app

Or go to Recording Profiles documentation in Project Aria Tools.

Known Issues

  • The new recording profiles are experimental and may be tuned further in the future.

Bug Fixes

  • Make sure your glasses’ OS is less than 2 months old, to make sure you have a fix for an issue that may cause sluggish behavior in your Aria glasses, difficulties updating the OS, streaming data and reduced upload times.
    • Updating OS includes troubleshooting steps if you have difficulties updating the OS.

Mobile Companion App v155

Please keep in mind, you can’t initiate recordings through the Mobile app if your glasses’ OS is more than 2 months old. Please make sure you update your glasses’ OS.

Updated look and feel of the Mobile app

The Mobile Companion app has a fresh new look! As part of this:

  • The Settings tab has been renamed Profile
  • Device Settings can be opened by tapping the glasses icon under Paired Glasses
Device Settings page from the Dashboard

Known Issues

  • The More info link on the top right of the Recording Profiles page may be difficult to see.

Bug Fixes

Minor bug fixes

QUESTIONS, CONCERNS, FEEDBACK?

Go to our Support page for ways to get in touch.


Announcing Project Aria MPS CLI Availability and New MPS Feature

February 28 2024

Dear Academic Partners,

We are pleased to announce Project Aria MPS CLI and new MPS capability multi-trajectory map alignment! As part of our ongoing commitment to empowering researchers, the Aria MPS CLI allows you to submit jobs to Machine Perception Services programmatically. This will hopefully bring a new level of efficiency and flexibility to your workflow.

⭐️Key features for MPS CLI

  • Request the following MPS services
    • Single and multi-sequence SLAM
      • SLAM Open/Closed loop trajectories
      • Semi-Dense point clouds and observations
      • Online sensor calibration
    • Eye gaze
      • General
      • Personalized
  • Recording Upload
    • VrsHealthCheck runs automatically before uploading. Upload is skipped if there is a failure.
    • Unfinished uploads can be resumed for up to 24 hrs
  • Processing
    • Improved efficiency from concurrent processing and upload of multiple recordings
    • Automatic download of outputs for immediate access
    • Enables re-processing of data within a set time-frame without the need for re-upload
  • Workflow integration Support
    • Run MPS CLI as part of a script of other workflow to run MPS on recordings via automation

How to get started with CLI

To experience the power of Aria MPS CLI, go to the Project Aria MPS CLI page for how to use it.

Videos of this feature are available in the Project Aria Academic Partner Announcements, Feedback & Support workplace group

⭐️MPS: MULTI-SLAM/MULTI-SEQUENCE MAP ALIGNMENT

This addition brings the ability to generate SLAM output in a common frame of reference and support for multi-sequence SLAM outputs in a common frame of reference. Please go to Multi-SLAM page for more information about the feature and go to the MPS CLI page for how to access it.

⭐️Feedback and Support

If you encounter any problems using Aria MPS CLI, there are several ways to get user support:

  • Post to Project Aria Academic Partner Announcements, Feedback & Support workplace group
  • Post to Project Aria Discord
  • Email AriaOps@meta.com and you can always request a meeting through this email if you need higher bandwidth discussion.
  • Additional resources are available at Project Aria Github.

Aria Mobile App v150 is now available

February 6 2024

Dear Academic Partners,

The Aria Mobile App v150 is now available. Go to the Downloads page to get the latest version for Android. For iOS, select Update in the TestFlight app. Please update the app.

BUG FIXES

Various bug fixes to improve the overall usage.

PROJECT ARIA LATEST OS

The latest Project Aria OS build 4967277.730.70 was released on 01/25/2024.

QUESTIONS, CONCERNS, FEEDBACK?

Go to our new Support page for ways to get in touch.

Project Aria Updates: Aria Mobile App v140 and changes to MPS

December 4 2023

Dear Academic Partners,

The Aria Mobile App v140 is now available. Go to the Downloads page to get the latest version for Android. For iOS, select Update in the Lighthouse app.

NEW & UPDATED FEATURES

MPS file outputs have been renamed

Machine Perception Services (MPS) outputs have been renamed, so that they more clearly communicate what is in the outputs:

Trajectory

  • global_points.csv.gz -> semidense_points.csv.gz

Eye Gaze

  • generalized_eye_gaze.csv -> general_eye_gaze.csv
  • calibrated_eye_gaze.csv -> personalized_eye_gaze.csv

KNOWN ISSUES

The MPS examples in Getting Started, Google Colab and the Visualization guide use the old naming conventions for MPS.

BUG FIXES

Various bug fixes improving the overall usage, including:

  • Client SDK/CLI issue resolved. Device Settings tab now automatically refreshes after you’ve allowed Client SDK pairing in the mobile app.

PROJECT ARIA LATEST OS

The latest Project Aria OS build 4965072.660.70 was released on 12/01/2023.

QUESTIONS, CONCERNS, FEEDBACK?

Go to our new Support page for ways to get in touch.

Announcing,  Project Aria Updates (ARK V1.5 & Project Aria Tools V1.2)

October 24, 2023

We’re delighted to announce Project Aria Research Kit V1.5, a point release encompassing new features for every aspect of Project Aria Research Kit (ARK), from a Client SDK and CLI, enabling you to directly interact with the glasses; to new Calibrated Eye Gaze, enabling you to achieve more accurate eye gaze estimations. Plus, you can now download the Mobile Companion app on iOS!

In this release:

  • Project Aria Client SDK V1.0.2
  • Aria Mobile Companion app V135
  • Project Aria OS build 4965072.660.70
  • Project Aria Tools V1.2

To access the new ARK features

Update the Mobile Companion app and Aria glasses OS to the latest version:

  • Follow the instructions in ARK SW Downloads and Updates to download and update the Aria Mobile Companion App on Android or iOS
  • Connect your Aria Glasses to Wi-Fi and power and they will automatically update

The Aria Research Kit parts of this release, support research partners with access to Project Aria glasses.

To access new Open Science features

Update Project Aria Tools:

Open Science releases can be helpful for users with or without access to Aria glasses.

Aria Research Kit Release Notes

Project Aria Client SDK with CLI

projectaria_client_sdk is a new Python package/client library that enables you to directly interact with your Project Aria glasses from a client machine. This enables you to stream Aria data and run MP algorithms on that data, in real-time.

The Client SDK currently offers the ability to:

  • Connect and disconnect from the device via USB and WiFi
  • Retrieve detailed device information and its current status
  • Control Aria streaming and recording capabilities
  • Access calibration data for the sensors you're recording with
  • Subscribe and listen to Aria sensors data
  • Visualize streaming data

A CLI, installed as part of the SDK, provides the ability to:

  • Pair the glasses via USB or Wi-Fi
  • Connect to the glasses via USB or Wi-Fi
  • Retrieve the device status and information
  • Control Aria recording and streaming capabilities

To support this new feature, we’ve added a Client SDK section to ARK Documentation in Project Aria Tools, including:

New & Improved Machine Perception Service: Calibrated Eye Gaze

You can now generate Calibrated Eye Gaze MPS for sequences captured on Project Aria glasses that have in-session Eye Gaze Calibration. This enables you to capture more data about how Aria wearers look at objects, and improve the eye gaze estimations for any given recording.

When you request Eye Gaze Machine Perception Services (MPS) and the file has an in-session Eye Gaze Calibration as part of the VRS file, you will receive two outputs:

  • generalized_eye_gaze.csv - based on the standard eye gaze configuration
  • calibrated_eye_gaze.csv - calibrated eye gaze data based on the calibration data collected in the recording.

Additional improvements to Eye Gaze MPS include:

  • Summary.json files are also now available for Eye Gaze MPS output
  • We’ve created a new visualization tool, MPS Replay Viewer (C++),  to render static scene and dynamic elements.

See below for more details:

Mobile Companion App improvements (and now available on iOS)

The Aria Mobile Companion App allows users to interact with their Aria glasses via mobile device. With this release, users will now be able to download the app on iOS as beta testing software via Testflight.

Installing or updating the Mobile Companion app on Android just became easier. You no longer need to sign in to the partner portal to ARK specific software. You can download it as a direct link from the ARK SW Downloads and Updates page or from an update prompt in the app.

Additionally, you’ll now have the ability to change the default Recording Profile when you make a recording using the Mobile Companion app.

See below for more details:

ARK Bug Fixes

Minor bug fixes and general quality of life improvements.

Known Issues

Client SDK/CLI

  • Unlike Project Aria Tools, the Client SDK is not available on Ubuntu 20.04
  • Device Settings tab does not automatically refresh after you’ve paired your glasses with SDK.
    • If you’re in the Device Settings tab when you select “aria auth pair”, navigate away from Device Settings and back again to view your certificate.

Further resources:

Getting Support

If you encounter any problems using ARK resources, there are several ways approved Academic Research Partners can access user support:

  • Report or view issues on GitHub - can be used to report ARK or Open Science issues
  • Post to Project Aria discord - best for discussion, feedback or user support
  • Post to Academic Partners Feedback and Support workplace group - discussion, feedback or user support
  • Email AriaOps@meta.com - for feedback or user support

PROJECT ARIA LATEST OS

The latest Project Aria OS build 4965072.660.70 was released on October 17th, 2023.

Open Science Updates (for everybody)

The Aria Research Kit, builds on top of projectaria_tools, which is available to anyone wishing to work with Aria data. New features contained within projectaria_tools V1.2 include:

Update Project Aria Tools to access these features:

Documentation updates and improvements for this release include:

For more details, please go to Project Aria Tools Release notes.

Open Science Bug Fixes

Bug fixes include:

Go to Project Aria Tools Issues on GitHub for more information.

If you encounter any problems working with Open Science tooling or data, we encourage you to post the issue on Github.

Open Science Known Issues

  • The Sophus API has been updated, if you encounter issues, please update to v1.2 of Project Aria Tools

Further resources

August Release - Project Aria Mobile App v125 is now available

8/22/2023

Dear Academic Partners,

Download the Aria Mobile App v125 to ensure you have all the latest features and capabilities.  Sign into the Aria Web Portal on your Android device to download v125.

NEW & UPDATED FEATURES

  • Ability to name VRS files via the Mobile Companion app
  • The default recording profile (if set via Mobile or Desktop app) will now also be the default profile when initiating recordings via the Mobile app
  • Added a feature that requires the app to be updated if the app build is flagged as severely buggy.

Ability to name VRS files

Historically, the VRS files were given random alphanumeric names. This made the recordings difficult to distinguish from one another in the Desktop app and after downloading them. With this new release, the name given to a recording when creating a custom recording defines the VRS file name. You’ll get a warning if there are two recordings with the same name on your Aria device.

To access this feature:

  1. In the mobile app, go to Settings to check that you have v125
    1. Sign into portal.projectaria.com on your phone to get the latest recommended build
  2. Go to device settings (select the gear icon next to your glasses) to check that you have 4963656.310.70 of the OS
    1. Aria glasses will automatically update if they’re connected to Wi-Fi and power
    2. Select Check for Updates in Device Settings to make sure you have the most recent version of the OS

How to name a recording:

Set the recording’s name when you create a custom recording, or edit the file name of any recording on your glasses. To edit the name or to give an existing recording a name:

  1. Go to the recording tab
  2. Select a recording
  3. Select Edit on the top right corner

Default recording profile applied to new recordings

With this change, the default recording profile selected for the glasses also applies to each recording started from the app. Previously, the default recording profile only applied to recordings started by the capture button on the glasses.

Please double-check that the correct profile is selected before you start each recording, as the behavior has changed. Previously, the app kept its own last-used setting; with this change, the default will flip back to the default recording profile of the glasses on connection. This default recording profile can be updated via Device Settings in the mobile app.

Disable severely buggy builds

This feature is a contingency plan, in case a severely broken app build is rolled out by mistake. In this situation, the app would show a full-screen dialog that requires it to be updated in order to proceed.

BUG FIXES

Various bug fixes implemented to improve the overall usage of the App.

PROJECT ARIA LATEST OS

The latest Project Aria OS build 4963656.310.70 was released on August 22, 2023.

QUESTIONS, CONCERNS, FEEDBACK?

Contact Aria User Support by posting in Project Aria Academic Partner Announcements, Feedback & Support or email AriaOps@meta.com.

July Release - new documentation site, Aria Desktop App v37 and Mobile App v120

7/11/23

Dear Academic Partners,

With this July release we’re pleased to announce a new documentation site on GitHub, Desktop Companion App v37, and Aria Mobile Companion App v120.

V37 of the Desktop Companion App updates the app to the new Project Aria branding, the ability to run the Desktop app from the command line and users will now be able to request Semi-Dense Point Cloud MPS.

Project Aria Tools is our new documentation site on GitHub. Information that used to be at projectaria.com is now in the Aria Research Kit sectionof the site and no login is required to access the documentation.

Download the updated companion apps from the Aria Web Portal. If you sign in on your desktop computer, you’ll get the Desktop Companion app. If you sign in on your Android mobile device, you’ll download the Mobile Companion app.

NEW AND UPDATED FEATURES

Documentation now on GitHub

The documentation previously hosted at projectaria.com will now be hosted in Project Aria Tools.

Project Aria Tools is the new comprehensive website for all your documentation needs. It contains over 60 pages, covering technical specifications, data formats, data utilities you can use with your data, information and tooling for open data we’ve released and technical insights for deeper dives.

The Aria Research Kit section contains information specific to Academic partners who have access to Aria glasses and MPS. We’ve added a few extra pages and updated the documentation for this release, updates include adding:

There is a lot of new documentation to explore, including:

Desktop App v37 - Semi-dense point cloud

From V37 of the Desktop app onwards, users will be able to request semi-dense point clouds as an addition to trajectory MPS services. The same sensor profile requirements for generating trajectory data apply to semi-dense point cloud.

Semi-dense point clouds are used by researchers who need static scene 3D reconstructions, reliable 2D images tracks or a representative visualization of the environment.

Improved UI & UX

  • The Desktop app has been updated to match Aria’s new brand
  • The recordings view has been revamped, users will now see a thumbnail for each recording and the upload ID can be copied
  • The Desktop app can now be run directly from the command line without needing a GUI. It currently includes two utilities as subcommands:
    • Further documentation about how to run the Desktop app from the command line will be added to the ARK wiki soon
    • health: use this to run validity checks on an Aria recording (VRS file)
      • It can be run from the command line as follows: AriaHub health vrsFilePath.vrs
      • These checks are also run on the VRS file automatically, before the file gets uploaded for MPS processing. The results of those checks can be found under your home directory under ./aria/logs
    • vrs: a Swiss army knife utility to manipulate VRS files in different ways
      • It can be run from the command line as follows: AriaHub vrs vrsFilePath.vrs
      • Go to VRS official documentation for a full list of commands

Mobile App v120 - Quality Screens Feature update

Some additional features have been added to the quality screen feature that was introduced with v115. You’ll now be able to see timecodes and the overall score percentage for the sensors.

BUG FIXES

Various bug fixes improving the overall usage of the Apps.

PROJECT ARIA LATEST DEVICE OS

The latest Project Aria device OS build 4962591.230.70 was released on June 30, 2023.

QUESTIONS, CONCERNS, FEEDBACK?

Contact Aria User Support by posting in Project Aria Academic Partner Announcements, Feedback & Support or email AriaOps@meta.com.



Aria Mobile App v115 is now available

Dear Academic Partners, The Aria Mobile App v115 for Android is now available for download from the Aria Web Portal (accessed via your Android internet browser).

NEW & UPDATED FEATURES

  • Sensor data quality signals
  • In-Session personalized eye gaze calibration
  • Differentiate paired glasses in the pairing screen
    • When you select Add glasses, the available Aria devices will be split into Paired Glasses and Other Glasses so that it’s easy to tell which glasses are already paired with the app.

Sensor Data Quality Signals

While making recordings, researchers will be able to see whether there are any sensor data quality issues (for example, due to thermal mitigation). To check for any issues, in the Mobile Companion app, view the "Sensor Status" section in the Recording Status Screen. Tap on the row to see full details. If you’ve initiated recording via the Capture button, access the Recording Status by selecting Recording in progress on the Mobile Companion app’s main dashboard.

In-Session Personalized Eye Gaze Calibration

Users will be able to record personalized eye gaze calibrations within an ongoing recording. The eye gaze calibration section of the sequence can be used to improve the eye gaze estimations in the rest of the recording. In the future, Machine Perception Services will be able to consume these recordings and output more accurate gaze information.

  1. In the Mobile Companion app, create a new recording using a profile that includes ET and RGB cameras (such as Profile 15 or 25)
  2. Once your recording has started, close the recording window
    • Select X on the top left of the screen
  3. Go to Device Settings (select the gear next to your glasses)
  4. Select Eye Tracking Calibration
  5. Confirm that you’d like to run the during the current recording session
  6. Follow the prompts to calibrate your glasses

Eye Gaze Calibration tips

Things to Avoid

❌ Do not wear a face covering during eye calibration.

❌ Choose an area with ample and even lighting; do not face a bright light, window or reflective surface.

❌ Do not set your phone screen brightness too high compared to your surroundings.

❌ Do not fully extend your arm(s) during eye calibration. Your elbows should be bent so that the phone is roughly 1 ft (30 cm) away from your face.

Helpful Tips

✅ The phone should be held straight in front of your face, so that you shouldn't look up or down to see the screen. Hold the phone plumb (90 degrees) vertically to the ground.

✅ The "Leveler" stage appears if the position of your phone isn't within specifications for the calibration process. Adjust the phone in front of you and its distance by bending your elbow until the smaller, black circle turns into a green disk with a check mark.

✅ Once the "Leveler" stage is successfully completed, do your best to keep your phone in exactly the same position throughout the full eye calibration process. If your phone is moved to a position no longer suited to calibrate your device, the app will return to the "Leveler" stage.

✅ The eye calibration stages 1 to 10 move your nose towards the direction indicated by the arrow. If you're only following the direction with your gaze without moving your head, the calibration stage will time out and fail. However, you make sure to keep your eyes fixed on the number within the dot the whole time.

BUG FIXES

Various bug fixes to improve the overall usage of the Companion App.

PROJECT ARIA LATEST OS

QUESTIONS, CONCERNS, FEEDBACK?

Contact Aria User Support by posting here in Project Aria Academic Partner Announcements, Feedback & Support or emailing AriaOps@meta.com.

Aria Mobile App v110 is now available

Dear Academic Partners,The Aria Mobile App v110 for Android is now available for download from the Aria Web Portal (accessed from your Android internet browser). Here are the updates this new version brings.

NEW & UPDATED FEATURES

  • App icons and splash screens for Android companion apps have been updated to Aria’s new branding. When you update the app it will now look like this!
  • From v110 onwards, users will be more easily able to tell if their Aria device’s OS is out of date and see prompts to update their devices.
  • If the glasses are significantly (currently set as 2 months) out of date, the app will disable recording until they are updated.
  • As before, glasses automatically update when connected to power and Wi-Fi.
  • Users will get an in-app prompt to update the app if the app build is over 8 weeks old.

BUG FIXES

  • Fixed a bug that occasionally prevented partner mode glasses from being set up for over-the-air software updates properly. Please double-check that your glasses are able to update to a recent build (April 2023 or later). If your glasses are not updating, please reach out to the Aria team.
  • After glasses are unpaired, the app prevents re-pairing with the glasses until they finish rebooting.
  • Other minor bug fixes

PROJECT ARIA LATEST OS

The latest Project Aria OS build was released on May 2, 2023.

QUESTIONS, CONCERNS, FEEDBACK?

Contact Aria User Support by posting here in Project Aria Academic Partner Announcements, Feedback & Support or emailing AriaOps@meta.com.

May 3, 2023 Aria Mobile App v110 is now available

Dear Academic Partners,

The Aria Mobile App v110 for Android is now available for download from theAria Web Portal (accessed from your Android internet browser). Here are the updates this new version brings.

NEW & UPDATED FEATURES

  • App icons and splash screens for Android companion apps have been updated to Aria's new branding.
  • From v110 onwards, users will be more easily able to tell if their Aria device's OS is out of date and see prompts to update their devices.
  • If the glasses are significantly (currently set as 2 months) out of date, the app will disable recording until they are updated.
  • As before, glasses automatically update when connected to power and Wi-Fi.
  • Users will get an in-app prompt to update the app if the app build is over 8 weeks old.

BUG FIXES

  • Fixed a bug that occasionally prevented partner mode glasses from being set up for over-the-air software updates properly. Please double-check that your glasses are able to update to a recent build (April 2023 or later). If your glasses are not updating, please reach out to the Aria team.
  • After glasses are unpaired, the app prevents re-pairing with the glasses until they finish rebooting.
  • Other minor bug fixes

PROJECT ARIA LATEST OS

The latest Project Aria OS build 4961244.1190.70 was released on May 2, 2023

QUESTIONS, CONCERNS, FEEDBACK?

Contact Aria User Support by posting in Project Aria Academic Partner Announcements, Feedback & Support or emailing AriaOps@meta.com.

April 3, 2023 Aria Desktop App v36 is now available

IMPORTANT NOTICE

v36 will clear the app's cache when you start it for the first time. Please make sure you download all of your MPS artifacts (Trajectory, Eye Gaze) before installing and starting v36.

Dear Academic Partners,

The Aria Desktop App v36 for Mac and Windows is now available for download from the Aria Web Portal including the brand new Linux version.

Here are the updates this new version brings:

NEW FEATURES

Aria for Linux is now available as a debian package for Ubuntu, more precisely the 22.04 LTS version. It is important to note the app was only tested for that specific version under Gnome 42.5 and X11 (X Server) as well as Wayland. Any other debian distribution (Ubuntu 22.04 fork such as Kubuntu, Mint etc..) or environment may or may not work.

  • Find updated instructions in the Aria For Linux Installer section of the Desktop App page to find out how to install Aria on Ubuntu.

IMPROVEMENTS

  • Reduced app size bundle (both pre and post install)
  • Reduced app startup time

BUG FIXES

Various bug fixes improving the overall usage of the Desktop App.

QUESTIONS, CONCERNS, FEEDBACK?

Contact Aria User Support by posting in Project Aria Academic Partner Announcements, Feedback & Support or emailing AriaOps@meta.com.


March 24, 2023 Aria Mobile App v105 is now available

Dear Academic Partners,

The Aria Mobile App v105 for Android is now available for download from the Aria Web Portal (accessed from your Android internet browser). Here are the updates this new version brings.

NEW & UPDATED FEATURES

  • The default recording profile, engaged when starting a recording by pressing the Capture button on the Project Aria device directly, can now be set and viewed on the Mobile Aria App on Android (see screenshot below). This feature used to be only available on the Desktop Aria App.
  • Tapping “Unpair Glasses” mentions the number of on-device recordings (not uploaded) the unpairing will delete through factory reset.
  • The Device ID is now listed in the app, below the serial number in the device settings page.

Go to the Device Info page for more information about Device IDs.

BUG FIXES

  • On Android only, a bug causing difficulties with switching between more than 8 paired glasses has been fixed.
  • The recording setup screen is no longer dismissed if the recording fails to start.
  • Minor bug fixes

PROJECT ARIA LATEST OS

The latest Project Aria OS build 4959822.780.70 was released on February 22, 2023.

QUESTIONS, CONCERNS, FEEDBACK?

Contact Aria User Support by posting in Project Aria Academic Partner Announcements, Feedback & Support or emailing AriaOps@meta.com.

February 22, 2023

Aria Mobile App v100 is now available

Dear Academic Partners,

The Aria Mobile App v100 for Android is now available for download from the Aria Web Portal (accessed from your Android internet browser). Here are the updates this new version brings.

NEW & UPDATED FEATURES

  • The on-screen status message stating a recording is starting or completing used to render the whole page temporarily unresponsive until the recording was fully started or saved. Now, an equivalent status message shows up on top of the screen (not as an overlay message in the center), allowing the user to dismiss or interact with the page at any time.
  • Several UI adjustments were made to improve visibility and ease of interaction with various app sections and buttons.

BUG FIXES

  • The issue causing the recording status to occasionally stay on-screen instead of being dismissed when completing a recording by pressing the Capture button has been fixed.
  • Minor bug fixes

PROJECT ARIA LATEST OS

The latest Project Aria OS build 4959822.780.70 was released on February 22, 2023.

QUESTIONS, CONCERNS, FEEDBACK?

Contact Aria User Support by posting in Project Aria Academic Partner Feedback & Support or emailing AriaOps@meta.com.



February 9, 2023, Aria Desktop App v35 is now available

Dear Academic Partners,

The Aria Desktop App v35 for Mac and Windows is now available for download from the Aria Web Portal. Here are the updates this new version brings.

NEW FEATURES

We revamped the Recordings view to simplify the distinction between accessing Project Aria's device storage and the tools tailored for processing VRS files on the local host with a dedicated VRS Tools tab. Every file operation on the local host (Mac/Windows) is now done using the native file explorer (Finder for Mac, File Explorer for Windows).

  • Find updated instructions in Desktop App instructions, in the Device Storage section, to know how to copy locally VRS files from the Project Aria device storage.
  • Find updated instructions in Desktop App wiki page, in the Playback section, to know how to read your locally copied VRS files.
  • Find updated instructions in MPS wiki page for how to request MPS.

BUG FIXES

Various bug fixes improving the overall usage.

QUESTIONS, CONCERNS, FEEDBACK?

Contact Aria User Support by posting in Project Aria Academic Partner Feedback & Support or emailing AriaOps@meta.com.



January 20, 2023, Aria Mobile Companion App v95 is now available

Dear Academic Partners,

The Aria Mobile Companion App v95 for Android is now available for download. Find it in the Aria Web Portal by visiting it directly from your Android internet browser. Here are the updates this new version brings.

NEW FEATURES

Backend Update for User Accounts

Over the next few weeks, we will be changing the way we create user accounts to log into the Aria Mobile App on Android. There should be no perceived difference after this change, even with older versions of the app. If you run into an issue, please contact us immediately.

Mobile App Update Prompt

When you launch the Mobile Companion app, it should trigger a notification prompting you to download the latest version from Aria Web Portal. If dismissed, the prompt will not show up again within the same day unless you log out and back in. Otherwise, the same notification prompt will show up the following day when launching the app.

BUG FIXES

Various bug fixes

QUESTIONS, CONCERNS, FEEDBACK?

Contact Aria User Support by posting in Project Aria Academic Partner Feedback & Support or emailing AriaOps@meta.com.

December 16, 2022 Major Feature Release 🚀(Dec 2022)

New Feature Summary

1) New Machine Perception Services (i.e. MPS): These features are available through the updated version of Desktop App.

  • Improved Trajectory - We will now provide additional Trajectory output, including 1 khz open loop trajectory (instead of low frequency 10 hz previously), 1 khz closed loop trajectory, online calibration at camera frame rate and more robust error messaging for scenarios where Trajectory processing fails.
  • Local Eye Gaze - Provides unit vectors and associated uncertainties for each ET frame. The gaze vectors are expressed in central pupil frame (CPF). We also provide CPF to device frame 6DOF transformation. 2) Aria Data Tools: Open Source tools that provide C++ and Python3 tools to interact with Project Aria data.
  • Read and visualize Project Aria sequences and sensor data
  • Retrieve calibration data and interact with Aria camera models
  • Read and visualize machine perception output from Project Aria sequences (6DoF Trajectory, Local Eye Gaze) 3) Usability & Bug Fixes:
  • Various usability improvements across Desktop, Mobile & Aria Data Tools
  • Improved documentation, including a “Troubleshooting & Known Issues” section
  • We will now be logging high-level anonymous usage data to better understand how we can improve your experience

ACCESSING NEW FEATURES

To gain access to new features, you will need to:

  • Download the most recent version of the Mobile (v90) and Desktop (v34) Apps from the Portal (projectaria.com). Additionally, we will prompt Mobile App users to update their app.
  • Access Aria Data Tools from Github

Thank you, and again please feel free to provide feedback. We want to hear the good, the bad and the ugly!

Detailed Release Notes

ARIA MOBILE APP V90

New features and bug fixes include:

  • “Task ID” and “Client Tag” fields have been renamed “Name” and “Notes”.
  • Access Denied screen no longer shows when external users start the app with no internet connection.
  • Wi-Fi can be configured while glasses are not connected to power. It does not allow uploading without plugging in the device.
  • Profile selection screen now shows sensor details for each profile.

Note: If your current version is under v85 it will not update automatically. Please delete and install v90 by signing into the Portal (projectaria.com) with your Android device.

ARIA DESKTOP APP V34

New features and bug fixes include:

  • New improved trajectory with open/close loop poses and online calibration.
  • Eye Gaze vectors with uncertainty.
  • Various usability improvements and bug fixes

DEVICE SW (BUILD 4958601.360.70)

Please make sure your device is charged and connected to wifi via Aria Mobile App to receive this build.

New features and bug fixes include:

  • Enabled USB streaming support on Mac OS (not available on AriaHub yet).
  • Added telemetry logging for a subset of device events with an anonymized location.
  • Added new recording profile21.
  • Companion App shows details about a streaming session started from AriaHub.
  • Updated security patch level to November 2022.
  • Added the ability to run RGB in RAW mode at high frame rate (not exposed in a profile yet).
  • Removed profile17 from the list of recording profiles.


November 11, 2022, Android Aria App v85 is now available

Dear Academic Partners,The Android Aria App v85 has now been released. Here is what you need to know.### NEW FEATURES AND IMPROVEMENTS

  • Thumbnails showing what was recorded appear in each Recording Details page under the Recordings tab immediately after that recording is completed and saved (this feature should become available after the next Project Aria OS update around November 15th)
  • If the Bluetooth and/or Location services need to be enabled, the app will now show a prompt to do so upon launching the app.
  • During an ongoing recording, the Profile and Sensors used are now mentioned on the active recording page.
  • Through the app, users can now connect a Project Aria device to an EAP-PWD Wi-Fi network (using username and password for authentication - does not support certificates).
  • The Android app will now show a banner on top of the screen indicating that the user has not selected a default Profile for the paired Project Aria device, which can only be done via the Desktop app.

IF YOUR CURRENT VERSION IS V80

As long as you're currently using v80 (check the app version in the app Settings page), launching the app should trigger a notification prompting you to download the latest version from the Partner Portal.

IF YOUR CURRENT VERSION IS OLDER THAN V80

App versions older than v80 will not receive any notifications, as this is a new feature (as announced in this post). In this case, you will need to uninstall the app and install v85 from the Partner Portal.

WHAT IF YOU DISMISSED THE PROMPT?

If you dismissed the notification prompting you to update, it should appear again when you launch the Android Aria App the following day. If you don't want to wait that long, you can directly install the latest version from the Partner Portal.

VERIFY V85 WAS INSTALLED

Once the Aria app is installed, login and tap the Settings tab at the bottom right corner of the Dashboard page. On that Settings page, you'll find the app version.

QUESTIONS, CONCERNS, FEEDBACK?

Contact Aria User Support by posting here in Project Aria Academic Partner Feedback & Support or emailing AriaOps@meta.com.



October 10, 2022 ARIA DESKTOP APP V32

With v32 a single universal Mac application is now available, supporting both Intel and Apple Silicon architecture

New Features

  • Single universal Mac application supporting both Intel and Apple Silicon architecture
  • Local Notifications for both Mac & Windows
  • Merging both Uploads & Local recordings in the same view
  • Ability to select a default profile when using the HW recording button
  • Resizable columns for the Local & Uploads tables
  • Overall app speed and performance improved

Deprecated Features

  • OS update & Wireless connection (you may now use the latest Companion App for that)

Bug Fixes

  • Frequent inability to select a recording profile
  • Inability to visualize the Aria Stream window
  • Various issues when using the extracting features via the "More" toolbar button
  • Windows app freezing randomly
  • On Mac, when in fullscreen, the top toolbar covering the top of the window As always, please make sure to update your glasses to the latest version using the Companion App before starting to use Aria For Mac and Aria for Windows V32


ARIA Companion App APP V80

With v80, updating the companion app is now easier.

New Features

Starting with v80, the Android app will show a notification prompting you to update it when a newer version becomes available. The on-screen prompt will take you to the location (Aria Web Portal) of the new version, allowing you to update the app faster.
