Video Color Space¶

By default, spdl.io decodes video frames to RGB24 so they can be fed directly into models that expect RGB tensors. When this default is not what you want, spdl.io can also decode into the codec’s native YUV color space or into other pixel formats. This is useful when:

You want to skip the YUV → RGB conversion and let your model (or downstream GPU code) consume YUV directly.
You have a model trained on YUV inputs (e.g. NV12 from a hardware decoder).
You want to reduce memory traffic. yuv420p is roughly half the size of rgb24 for the same resolution.

This page covers the supported pixel formats, the resulting tensor shapes, and how to control which one spdl.io produces.

The `filter_desc` argument¶

Color-space conversion in spdl.io is controlled by the filter_desc argument passed to spdl.io.load_video(), spdl.io.decode_packets(), and related functions. There are three modes:

Unset (default). spdl.io builds a filter graph that converts the output to rgb24. This is the easy path for models that expect RGB.

import spdl.io

# Decoded to rgb24 — shape (num_frames, H, W, 3), dtype uint8.
buffer = spdl.io.load_video("video.mp4")

Explicit pixel format. Use spdl.io.get_video_filter_desc() to pick a different pix_fmt.

filter_desc = spdl.io.get_video_filter_desc(pix_fmt="yuv420p")
buffer = spdl.io.load_video("video.mp4", filter_desc=filter_desc)

Disabled (``filter_desc=None``). No filter graph is constructed and no pixel-format conversion happens. The buffer keeps the codec’s native pixel format — for most codecs this is yuv420p. This is the cheapest path when you do not need RGB.
```
buffer = spdl.io.load_video("video.mp4", filter_desc=None)
```

Supported pixel formats¶

The following pixel formats are recognised by spdl.io when converting decoded frames into a buffer. See spdl.io.get_video_filter_desc() for the parameter reference.

`pix_fmt`	Layout	Channels	Buffer shape (per video)	Notes
`rgb24`	Interleaved	3	`(N, H, W, 3)`	Default. NHWC, `uint8`.
`rgba`	Interleaved	4	`(N, H, W, 4)`	NHWC, `uint8`. With alpha.
`gray8`	Interleaved	1	`(N, H, W, 1)`	Single luma channel, `uint8`.
`yuv444p` / `yuvj444p`	Planar	3	`(N, 3, H, W)`	NCHW. Three full-resolution planes (Y, U, V). `yuvj` variants use full range (0–255); `yuv` uses limited range (16–235 for Y).
`yuv420p` / `yuvj420p`	Planar (packed)	1	`(N, 1, H + H/2, W)`	Y plane on top (`H × W`), U and V planes (each `H/2 × W/2`) packed underneath.
`yuv422p` / `yuvj422p`	Planar (packed)	1	`(N, 1, 2H, W)`	Y plane on top, U and V planes (each `H × W/2`) packed underneath.
`nv12`	Semi-planar (packed)	1	`(N, 1, H + H/2, W)`	Y plane on top, U/V interleaved underneath. The native format of many hardware decoders (e.g. NVDEC).

In every case, N is the number of decoded frames, H and W are the frame dimensions, and the dtype is uint8.

Examples¶

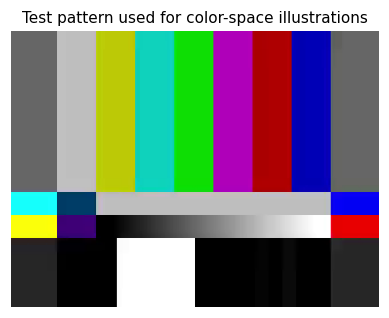

The figures below illustrate each pixel format on the same source frame. The left panel is the canonical RGB rendering (decoded with the default filter_desc); the remaining panels are the raw planes that spdl.io returns, plotted as grayscale images at their actual resolution. The buffer shape is shown in the title.

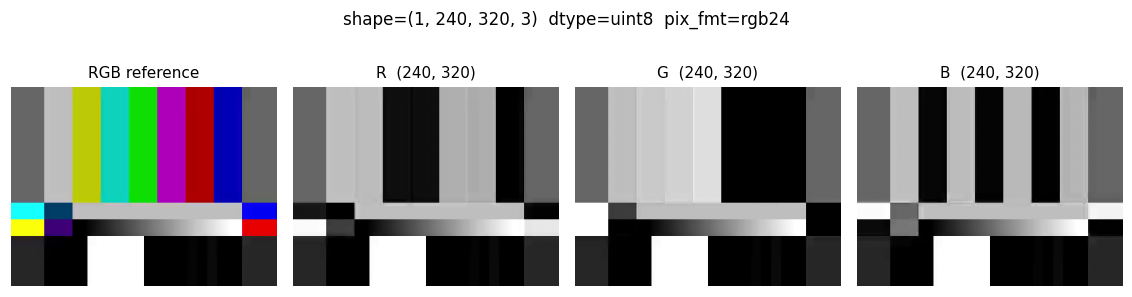

RGB24 (default)¶

Three interleaved channels stored in NHWC order — the simplest layout, and what most PyTorch / NumPy code expects.

buffer = spdl.io.load_video("video.mp4")
array = spdl.io.to_numpy(buffer)
# array.shape == (num_frames, H, W, 3)

RGBA¶

Same as RGB24 but with an alpha channel. Useful for sources that carry transparency.

filter_desc = spdl.io.get_video_filter_desc(pix_fmt="rgba")
buffer = spdl.io.load_video("video.mp4", filter_desc=filter_desc)
# array.shape == (num_frames, H, W, 4)

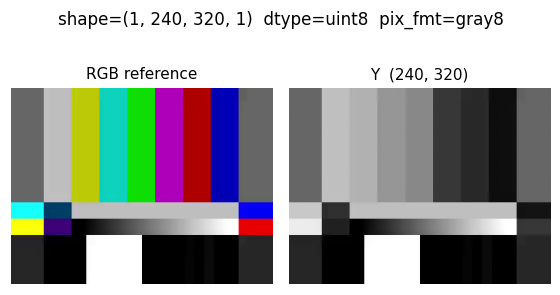

Grayscale (`gray8`)¶

A single luma channel.

filter_desc = spdl.io.get_video_filter_desc(pix_fmt="gray8")
buffer = spdl.io.load_video("video.mp4", filter_desc=filter_desc)
# array.shape == (num_frames, H, W, 1)

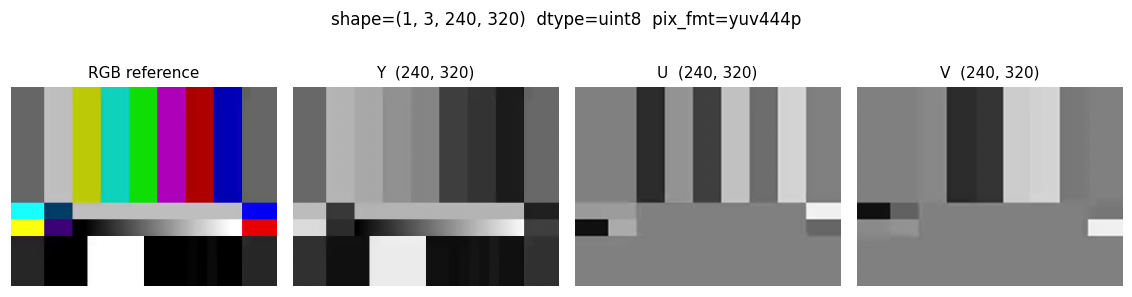

YUV 4:4:4 — full chroma resolution¶

True planar YUV: three independent planes at full resolution, in NCHW order.

filter_desc = spdl.io.get_video_filter_desc(pix_fmt="yuv444p")
buffer = spdl.io.load_video("video.mp4", filter_desc=filter_desc)
# array.shape == (num_frames, 3, H, W)

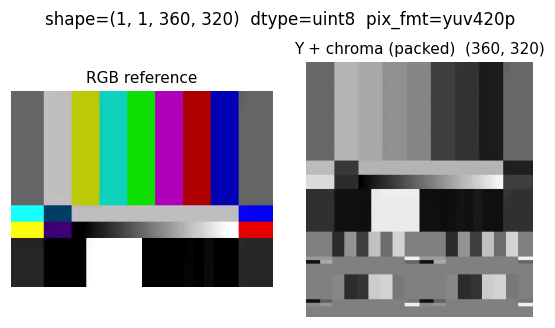

YUV 4:2:0 — codec-native chroma subsampling¶

The native pixel format for most H.264 / H.265 / VP9 video. The chroma planes are subsampled by 2× in both dimensions and packed below the luma plane in a single (H + H/2) × W buffer. Total size is 1.5× H × W, half the size of rgb24.

filter_desc = spdl.io.get_video_filter_desc(pix_fmt="yuv420p")
buffer = spdl.io.load_video("video.mp4", filter_desc=filter_desc)
# array.shape == (num_frames, 1, H + H // 2, W)

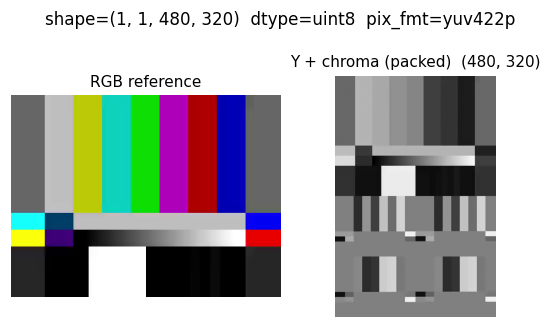

YUV 4:2:2 — chroma subsampled horizontally¶

Chroma subsampled by 2× horizontally only. The packed buffer is 2H × W — Y on top, U and V each H × W/2 packed beneath.

filter_desc = spdl.io.get_video_filter_desc(pix_fmt="yuv422p")
buffer = spdl.io.load_video("video.mp4", filter_desc=filter_desc)
# array.shape == (num_frames, 1, 2 * H, W)

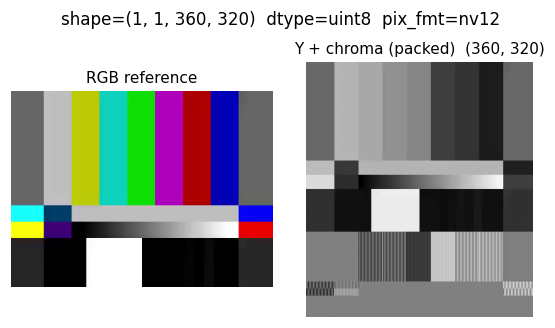

NV12 — semi-planar YUV 4:2:0¶

NV12 has the same total size and Y layout as yuv420p but interleaves U and V samples (UVUVUV...) in a single chroma plane. This is the format emitted by many hardware decoders (including NVDEC); decoding directly into NV12 avoids a deinterleave step.

filter_desc = spdl.io.get_video_filter_desc(pix_fmt="nv12")
buffer = spdl.io.load_video("video.mp4", filter_desc=filter_desc)
# array.shape == (num_frames, 1, H + H // 2, W)

Skipping the conversion entirely¶

Passing filter_desc=None disables the filter graph altogether. The returned buffer keeps whatever pixel format the decoder produces — for software H.264 / H.265 / VP9 decoders this is almost always yuv420p.

# No filtering, no color conversion, no scaling.
buffer = spdl.io.load_video("video.mp4", filter_desc=None)

Use this mode when:

You want maximum decoding throughput and do not need RGB.
You will do color conversion later on the GPU (often cheaper than on the CPU).
You want to be sure spdl.io is not silently inserting a scale or format filter.

When filter_desc is None, other filter-graph features (scale_width / scale_height, crop_width / crop_height, num_frames padding, timestamp trimming, etc.) are also disabled — those are all built on top of the filter graph. If you need any of them, pass an explicit filter_desc instead.
