Example: Video Classification (MTP + Concurrency Tuning)

This page describes the second autoresearch run on the video classification example pipeline. The first run (Example: Video Classification) discovered GPU NVDEC decode, split demux/decode, and subclip windowing — reducing step time from 426ms to 153ms (2.78×). This run starts from that optimized baseline and pushes further by introducing subprocess isolation (MTP) and concurrency tuning, achieving a 7.0× throughput improvement over the new baseline.

Setup

Starting point: The pipeline from the first autoresearch run, which uses GPU NVDEC decode with a split demux/decode architecture, subclip 2s windowing, dedicated thread executors, and bf16 autocast.

Pipeline:

Sampling → fetch (c=8) → disaggregate → demux (c=8) → NvdecDecode (c=16) → aggregate → collate

Hardware: 1×8 H100 GPUs (grandteton).

Engine configuration:

spdl autoresearch engine \
  --workflow spdl.autoresearch.pipeline_optimization:create_workflow \
  --workdir /data/users/moto/autoresearch/video_classification_opt_v5 \
  --max-concurrency 3 --platform auto \
  -- \
  --pipeline-script video_classification.py \
  --source-dir spdl/examples/video_classification \
  --build-command '...' \
  --base-launch-command 'torchx run ...' \
  --max-iterations 20 --patience 5 --job-timeout 600

The engine ran with up to 3 concurrent experiments and a 10-minute timeout per job.

Baseline

The starting pipeline produced 195 samples/s (3,120 fps) with 14.7% steady-state GPU SM utilization. The headspace analysis (CacheDataLoader) measured a compute floor of 37.6ms/step — 94% of step time was spent waiting for data.

Unlike the first run, MTP (subprocess pipeline) succeeded this time because packet serialization support was added to SPDL, enabling demuxed VideoPackets to be pickled across the process boundary. The MTP seed experiment provided a modest +4% improvement (202.8 sps) by isolating CPU data loading threads from CUDA kernel scheduling.

Results

The best configuration (gc_disabled_buffer_5) achieved 1,368 samples/s (21,890 fps), a 7.0× improvement from the baseline of 195 sps (3,120 fps). The optimized pipeline is available in the repository at commit fa5e934.

Optimization Breakdown

Optimization	Throughput	Step Time	Cumulative Improvement
Baseline (single process, demux c=8, NVDEC c=16)	195 sps	632ms	—
+ MTP subprocess isolation	203 sps	573ms	↑4%
+ Subclip 0.5s (from 2.0s)	317 sps	395ms	↑63%
+ NVDEC concurrency 7 (from 16)	353 sps	360ms	↑81%
+ Subclip 0.5s + NVDEC c=7 combined	386 sps	332ms	↑98%
+ Demux concurrency 4 (from 8)	1,126 sps	113ms	↑478%
+ Demux concurrency 3	1,294 sps	93ms	↑564%
+ GC disabled + frontend buffer=5	1,368 sps	85ms	↑601%

Key Discoveries

What worked

1. Reducing demux concurrency from 8 to 3 — The single biggest lever and the most counter-intuitive finding. Demuxing was assumed to be a near-trivial operation (milliseconds per item vs hundreds of milliseconds for decoding), so its concurrency seemed unimportant. In reality, demux threads contend severely at modest concurrency levels, and per-item latency rises sharply:

   Note

   A follow-up investigation traced the bottleneck to FFmpeg’s codec_mutex — a process-wide lock in libavcodec/avcodec.c that serializes codec->init() for any decoder flagged FF_CODEC_CAP_NOT_INIT_THREADSAFE (applied to codecs backed by external libraries whose thread-safety status is unknown to FFmpeg). Every Demuxer construction calls avformat_find_stream_info, which internally opens decoders to probe stream parameters, hitting this lock once per stream.

   Demux Contention Curve

   Concurrency	Per-item Latency (p50)	Throughput
   c=2	~0.010s	1,261 sps
   c=3	0.013s	1,294 sps
   c=4	0.023s	1,126 sps
   c=6	0.067s	580 sps
   c=8 (default)	0.150s	386 sps

   Going from c=8 to c=3 reduced per-item demux latency by 11.5× (0.150s → 0.013s). The agent mapped this curve methodically and pinpointed c=3 as the sweet spot.

2. Shorter subclip duration (0.5s vs 2.0s) — The first run found 2.0s optimal. With MTP subprocess isolation and the improved pipeline architecture, 0.5s became viable — the demux seeking overhead that penalized short clips in the first run was eliminated by running demux in a separate process.

3. MTP subprocess isolation — Running demux in a subprocess via spdl.pipeline.run_pipeline_in_subprocess isolates CPU-intensive FFmpeg container parsing from CUDA kernel launch scheduling. This required packet serialization support (pickle for VideoPackets).

4. GC management — Disabling automatic garbage collection during training steps and running gc.collect() between epochs eliminated periodic latency spikes (~30ms every 50 steps).

5. Frontend buffer size — Increasing the frontend sink buffer from 3 to 5 smoothed NVDEC timing jitter, providing a marginal but consistent improvement.

What did not work

1. Increasing demux concurrency (c=12, c=16) — Every experiment with higher demux concurrency was worse than baseline. The intuition “more threads = more throughput” pointed in the wrong direction for this memory-bandwidth-bound stage.

2. Larger batch sizes (alone) — Batch=32 without other optimizations only yielded +5%. However, batch=32 combined with the full MTP + concurrency tuning stack was competitive (1,301 sps).

3. CPU decode — CPU-based FFmpeg decode with demux c=4 reached ~1,060 sps — competitive but ~20% below NVDEC configurations.

4. torch.compile — Added compilation warmup with no steady-state improvement. The model (R3D-18 at 112×112) is too compute-light for compilation to matter.

5. Streaming demux — Both streaming demux variants crashed or stalled.

6. Priority executor — Provided no improvement over standard ThreadPoolExecutor configurations.

Pipeline Architecture: Before and After

Before (single process, 195 sps):

pipeline = (
    PipelineBuilder()
    .add_source(source, continuous=True)
    .pipe(dataset.__getitem__, concurrency=8, executor=fetch_executor)
    .disaggregate()
    .pipe(Demux(...), concurrency=8, executor=demux_executor)
    .pipe(nvdec_decode, concurrency=16, executor=decode_executor)
    .aggregate(batch_size, drop_last=True)
    .pipe(collate)
    .add_sink(buffer_size=3)
    .build(num_threads=2)
)

After (MTP subprocess split, 1,368 sps):

# Backend (subprocess) — CPU-only: fetch → disaggregate → demux
backend = (
    PipelineBuilder()
    .add_source(source, continuous=True)
    .pipe(partial(_fetch_sample, dataset=dataset), concurrency=num_fetch_threads)
    .disaggregate()
    .pipe(
        partial(_demux_sample, label_to_index=label_to_index, ...),
        concurrency=3,  # not 8 — memory-bandwidth contention
    )
    .add_sink(buffer_size=3)
)

source2 = spdl.pipeline.run_pipeline_in_subprocess(
    backend.get_config(),
    num_threads=max(num_fetch_threads, num_demux_threads),
    mp_context="forkserver",
)

# Frontend (main process) — GPU NVDEC decode → aggregate → collate
frontend = (
    PipelineBuilder()
    .add_source(source2, continuous=True)
    .pipe(nvdec_decode, concurrency=7, executor=decode_executor)  # match H100 HW slots
    .aggregate(batch_size, drop_last=True)
    .pipe(collate)
    .add_sink(buffer_size=5)
)
pipeline = frontend.build(num_threads=2)

Progress

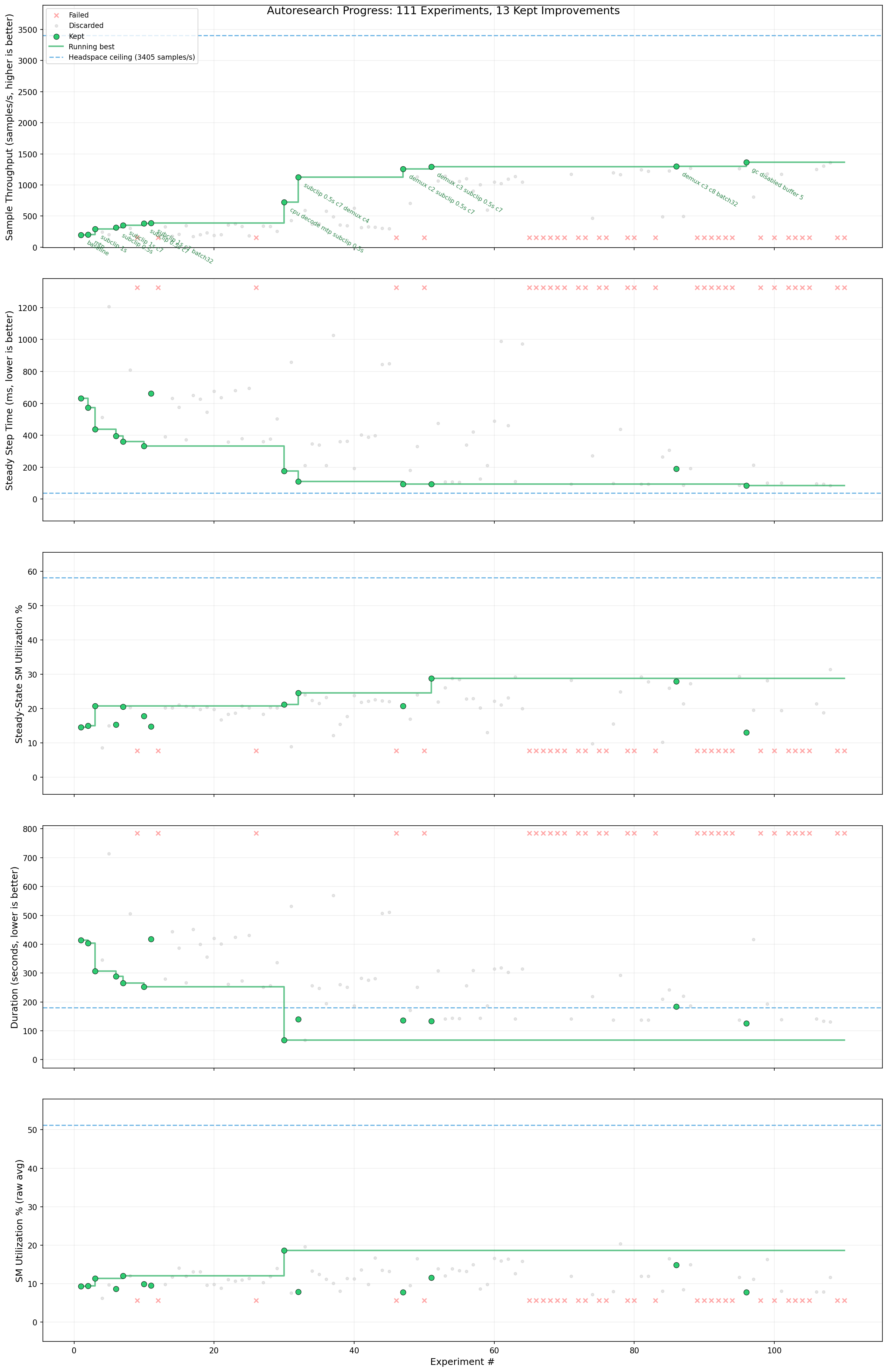

The following plot shows throughput, step time, SM utilization, job duration, and raw SM utilization across all 111 experiments. Green dots mark improvements over the running best. The dashed blue line shows the headspace ceiling (3,405 samples/s steady-state compute floor).

Throughput climbed steadily through the first 30 experiments as the engine discovered subclipping and NVDEC concurrency tuning. The breakthrough at experiment ~30 (reducing demux concurrency to c=4) caused a sharp jump past 1,000 sps. Subsequent experiments refined the demux sweet spot (c=3 vs c=2 vs c=4) and stacked GC/buffer tuning for the final result.

Hypothesis Tree

The tree shows the engine exploring three main branches from the seed experiments: subclipping (the dominant branch), decode concurrency tuning, and batch size. The breakthrough path runs through subclip 0.5s → NVDEC c=7 → demux c=4 → demux c=3 → GC+buffer tuning. Failed experiments (red nodes) include high demux concurrency, streaming demux, and torch.compile — each failure narrowed the search space and confirmed that concurrency reduction, not increase, was the right direction.

Remaining Headspace

Compute floor (CacheDataLoader)	37.6ms (3,405 sps)
Best achieved	85ms (1,368 sps)
Remaining headspace	~60%
Bottleneck	NVDEC hardware decode rate (7 slots)

The best result is now limited by NVDEC frontend throughput — the 7 hardware decoder slots on H100 are the binding constraint. Further improvement would likely require IPC optimizations (e.g. memory arenas to reduce pickle/unpickle overhead across the subprocess boundary) or pre-decoded datasets.

Experiment Statistics

The engine ran more than 100 experiments over approximately 20 hours with up to 3 concurrent jobs. About a quarter failed at runtime — mostly aggressive configurations (high demux concurrency, streaming demux, torch.compile, exotic GC settings) that the engine tried knowing some would fail. Of those that completed, 12 produced kept improvements.
