Performance analysis

This examlple shows how to collect runtime performance statistics using TensorBoard.

Note

To learn how to interpret the performance statistics please refer to Optimization Guide.

The Pipeline class can collect runtime statistics and periodically publish it. This example shows how to write a callback function for publishing the stats, and how to attach the callback to the Pipeline object.

The performance stats are exposed as TaskPerfStats and QueuePerfStats classes.

You can add custom callbacks by following steps.

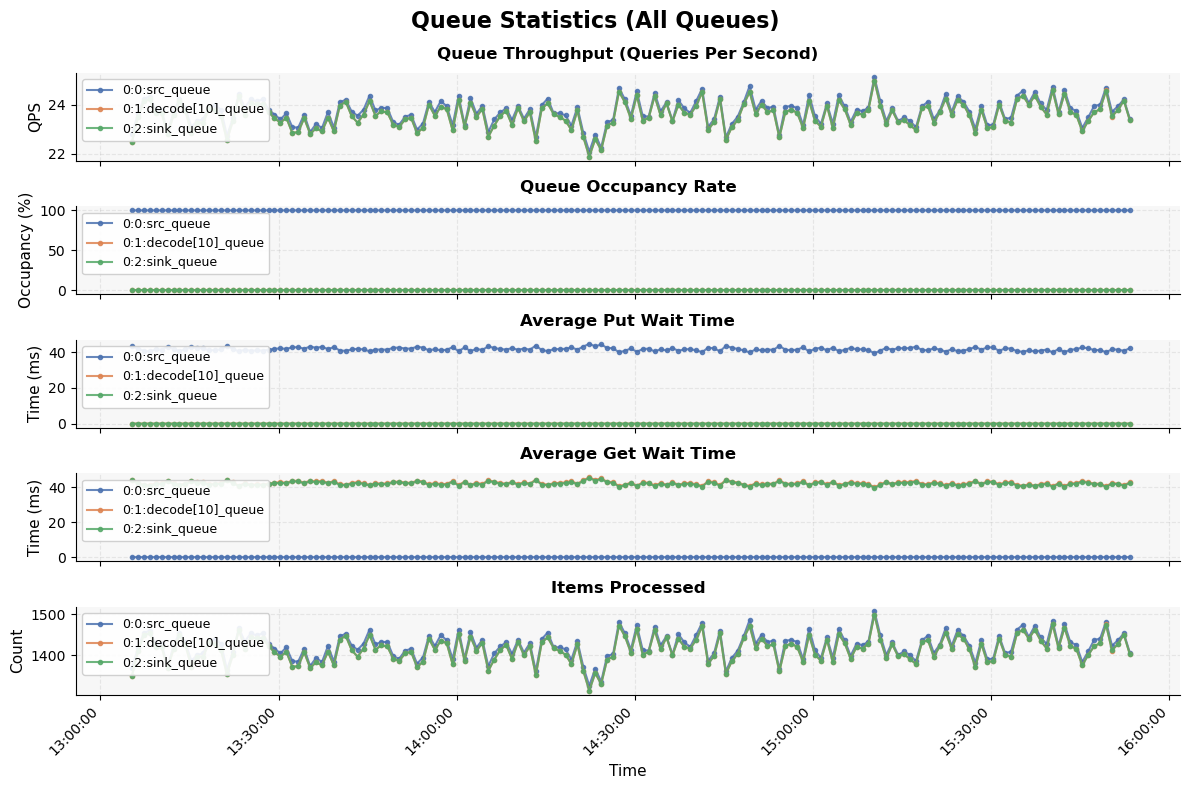

For QueuePerfStats:

1. Subclass StatsQueue and override StatsQueue.interval_stats_callback().

2. In the interval_stats_callback method, save the fields of QueuePerfStats to somewhere you can access later.

3. Provide the new class to PipelineBuilder.build() method.

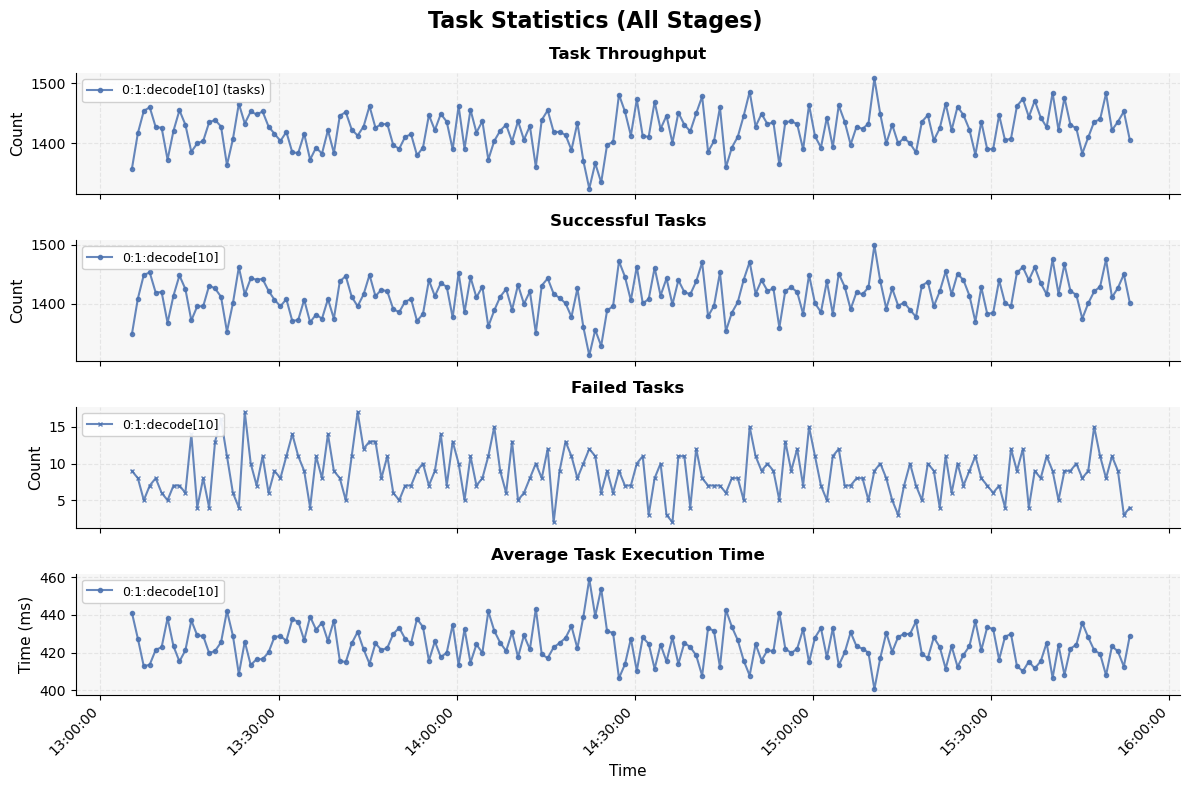

Similarly for TaskPerfStats

1. Subclass TaskStatsHook and override TaskStatsHook.interval_stats_callback().

2. In the interval_stats_callback method, save the fields of TaskPerfStats to somewhere you can access later.

3. Create a factory function that takes a name of the stage function and return a list of TaskHook-s applied to the stage.

4. Provide the factory function to PipelineBuilder.build() method.

Source

Source

Click here to see the source.

#!/usr/bin/env python3
# Copyright (c) Meta Platforms, Inc. and affiliates.
# All rights reserved.
#
# This source code is licensed under the BSD-style license found in the
# LICENSE file in the root directory of this source tree.

"""This examlple shows how to collect runtime performance statistics using TensorBoard.

.. image:: ../_static/data/example_performance_analysis_tensorboard.png
   :alt: An example of how stats shown using TensorBoard UI.

.. note::

   To learn how to interpret the performance statistics please refer to
   `Optimization Guide <../performance_analysis/index.html>`_.

.. py:currentmodule:: spdl.pipeline

The :py:class:`Pipeline` class can collect runtime statistics
and periodically publish it.
This example shows how to write a callback function for publishing the stats, and
how to attach the callback to the Pipeline object.

The performance stats are exposed as :py:class:`TaskPerfStats` and
:py:class:`QueuePerfStats` classes.

You can add custom callbacks by following steps.

For :py:class:`QueuePerfStats`:

#. Subclass :py:class:`StatsQueue` and
   override :py:meth:`StatsQueue.interval_stats_callback`.
#. In the ``interval_stats_callback`` method,
   save the fields of ``QueuePerfStats`` to somewhere you can access later.
#. Provide the new class to :py:meth:`PipelineBuilder.build` method.

Similarly for :py:class:`TaskPerfStats`

#. Subclass :py:class:`TaskStatsHook` and
   override :py:meth:`TaskStatsHook.interval_stats_callback`.
#. In the ``interval_stats_callback`` method,
   save the fields of ``TaskPerfStats`` to somewhere you can access later.
#. Create a factory function that takes a name of the stage function and
   return a list of :py:class:`TaskHook`-s applied to the stage.
#. Provide the factory function to :py:meth:`PipelineBuilder.build` method.
"""

import argparse
import asyncio
import contextlib
import logging
import time
from collections.abc import Iterator
from functools import partial
from pathlib import Path

import spdl.io
import torch
from spdl.pipeline import (
    Pipeline,
    PipelineBuilder,
    QueuePerfStats,
    StatsQueue,
    TaskHook,
    TaskPerfStats,
    TaskStatsHook,
)
from torch.utils.tensorboard import SummaryWriter

__all__ = [
    "parse_args",
    "main",
    "build_pipeline",
    "decode",
    "CustomTaskHook",
    "CustomQueue",
]

# pyre-strict


def parse_args() -> argparse.Namespace:
    """Parse command line arguments."""
    parser = argparse.ArgumentParser(
        description=__doc__,
    )
    parser.add_argument(
        "--dataset-dir",
        type=Path,
        required=True,
    )
    parser.add_argument(
        "--log-dir",
        type=Path,
    )
    parser.add_argument(
        "--log-interval",
        type=float,
        default=120,
    )
    return parser.parse_args()


class CustomTaskHook(TaskStatsHook):
    """Extend the :py:class:`~spdl.pipeline.TaskStatsHook` to add logging to TensorBoard.

    This class extends the :py:class:`~spdl.pipeline.TaskStatsHook`, and periodically
    writes the performance statistics to TensorBoard.

    Args:
        name, interval: See :py:class:`spdl.pipeline.TaskStatsHook`
        writer: TensorBoard summary writer object.
    """

    def __init__(
        self,
        name: str,
        interval: float = -1,
        *,
        writer: SummaryWriter,
    ) -> None:
        super().__init__(name=name, interval=interval)
        self._writer = writer
        self._step = -1

    async def interval_stats_callback(self, stats: TaskPerfStats) -> None:
        """Log the performance statistics to TensorBoard.

        Args:
            stats: See :py:meth:`spdl.pipeline.TaskStatsHook.interval_stats_callback`.
        """
        await super().interval_stats_callback(stats)

        self._step += 1
        walltime = time.time()
        vals = {
            "pipeline_task/ave_time": stats.ave_time,
            "pipeline_task/num_invocations": stats.num_tasks,
            "pipeline_task/num_failures": stats.num_failures,
        }
        await asyncio.get_running_loop().run_in_executor(
            None, _log, self._writer, self.name, vals, self._step, walltime
        )


class CustomQueue(StatsQueue):
    """Extend the :py:class:`~spdl.pipeline.StatsQueue` to add logging TensorBoard.


    This class extends the :py:class:`~spdl.pipeline.TaskStatsHook`, and periodically
    writes the performance statistics to TensorBoard.

    Args:
        name, buffer_size, interval: See :py:class:`spdl.pipeline.StatsQueue`
        writer: TensorBoard summary writer object.
    """

    def __init__(
        self,
        name: str,
        buffer_size: int = 1,
        interval: float = -1,
        *,
        writer: SummaryWriter,
    ) -> None:
        super().__init__(name=name, buffer_size=buffer_size, interval=interval)
        self._writer = writer
        self._step = -1

    async def interval_stats_callback(self, stats: QueuePerfStats) -> None:
        """Log the performance statistics to TensorBoard.

        Args:
            stats: See :py:meth:`spdl.pipeline.StatsQueue.interval_stats_callback`.
        """
        await super().interval_stats_callback(stats)

        self._step += 1
        walltime = time.time()

        vals = {
            "pipeline_queue/qps": stats.qps,
            "pipeline_queue/ave_put_time": stats.ave_put_time,
            "pipeline_queue/ave_get_time": stats.ave_get_time,
            "pipeline_queue/occupancy_rate": stats.occupancy_rate,
        }
        await asyncio.get_running_loop().run_in_executor(
            None, _log, self._writer, self.name, vals, self._step, walltime
        )


def _log(
    writer: SummaryWriter,
    name: str,
    vals: dict[str, float],
    step: int | None,
    walltime: float,
) -> None:
    for k, v in vals.items():
        writer.add_scalars(k, {name: v}, global_step=step, walltime=walltime)


def decode(path: Path, width: int = 128, height: int = 128) -> torch.Tensor:
    """Decode the video from the given path with rescaling.

    Args:
        path: The path to the video file.
        width,height: The resolution of video after rescaling.

    Returns:
        Uint8 tensor in shape of ``[N, C, H, W]``: Video frames in Tensor.
    """
    packets = spdl.io.demux_video(path)
    frames = spdl.io.decode_packets(
        packets,
        filter_desc=spdl.io.get_filter_desc(
            packets,
            scale_width=width,
            scale_height=height,
            pix_fmt="rgb24",
        ),
    )
    buffer = spdl.io.convert_frames(frames)
    return spdl.io.to_torch(buffer).permute(0, 2, 3, 1)


def build_pipeline(
    source: Iterator[Path],
    writer: SummaryWriter,
    log_interval: float,
    concurrency: int,
) -> Pipeline:
    """Build the pipeline using :py:class`CustomTaskHook`, and :py:class:`CustomQueue`.

    Args:
        source: A data source.
        writer: A TensorBoard SummaryWriter object.
        log_interval: The interval (in second) the performance data is saved.
        concurrency: The concurrency for video decoding.
    """

    def hook_factory(name: str) -> list[TaskHook]:
        return [CustomTaskHook(name=name, interval=log_interval, writer=writer)]

    return (
        PipelineBuilder()
        .add_source(source=source)
        .pipe(decode, concurrency=concurrency)
        .add_sink()
        .build(
            num_threads=concurrency,
            queue_class=partial(
                CustomQueue,
                writer=writer,
                interval=log_interval,
            ),
            task_hook_factory=hook_factory,
        )
    )


def main() -> None:
    """The main entry point for the example."""
    logging.basicConfig(level=logging.INFO)
    args = parse_args()
    source = args.dataset_dir.rglob("*.mp4")
    with contextlib.closing(SummaryWriter(args.log_dir)) as writer:
        pipeline = build_pipeline(
            source=source,
            writer=writer,
            log_interval=args.log_interval,
            concurrency=8,
        )
        with pipeline.auto_stop():
            for _ in pipeline:
                pass


if __name__ == "__main__":
    main()

Functions

Functions

parse_args() → Namespace

Parse command line arguments.

main() → None

The main entry point for the example.

build_pipeline(source: Iterator[Path], writer: SummaryWriter, log_interval: float, concurrency: int) → Pipeline

Build the pipeline using :py:class`CustomTaskHook`, and CustomQueue.

Parameters:

• source – A data source.

• writer – A TensorBoard SummaryWriter object.

• log_interval – The interval (in second) the performance data is saved.

• concurrency – The concurrency for video decoding.

decode(path: Path, width: int = 128, height: int = 128) → Tensor

Decode the video from the given path with rescaling.

Parameters:

• path – The path to the video file.

• width – The resolution of video after rescaling.

• height – The resolution of video after rescaling.

Returns:

Video frames in Tensor.

Return type:

Uint8 tensor in shape of [N, C, H, W]

Classes

Classes

class CustomTaskHook(name: str, interval: float = -1, *, writer: SummaryWriter)

Extend the TaskStatsHook to add logging to TensorBoard.

This class extends the TaskStatsHook, and periodically writes the performance statistics to TensorBoard.

Parameters:

• name – See spdl.pipeline.TaskStatsHook

• interval – See spdl.pipeline.TaskStatsHook

• writer – TensorBoard summary writer object.

async interval_stats_callback(stats: TaskPerfStats) → None

Log the performance statistics to TensorBoard.

Parameters:

stats – See spdl.pipeline.TaskStatsHook.interval_stats_callback().

class CustomQueue(name: str, buffer_size: int = 1, interval: float = -1, *, writer: SummaryWriter)

Extend the StatsQueue to add logging TensorBoard.

This class extends the TaskStatsHook, and periodically writes the performance statistics to TensorBoard.

Parameters:

• name – See spdl.pipeline.StatsQueue

• buffer_size – See spdl.pipeline.StatsQueue

• interval – See spdl.pipeline.StatsQueue

• writer – TensorBoard summary writer object.

async interval_stats_callback(stats: QueuePerfStats) → None

Log the performance statistics to TensorBoard.

Parameters:

stats – See spdl.pipeline.StatsQueue.interval_stats_callback().
