Parallelism and Performance

With the introduction of free-threaded Python, the use of multi-threading will become undoubtedly common.

When we started SPDL, we thought multi-threading would solve all the data loading inefficiency. However, we encountered a case where simply applying multi-threading (while properly releasing the GIL) degradated the performance. We would like to share our experience and thoughts for parallelism and performance.

Note

To learn about the use of different parallelism with SPDL, please refer to the Parallelism.

Pipeline Speed

The following plot shows the training QPS (inverse of step time) of the pipeline.

  • baseline is the original implementation, which is based on TorchData’s StatefulDataLaoder.

  • headspace is the upper limit obtained by using CacheDataLoader. (See Headspace Analysis.)

  • mt is the solution based on simple multi-threading.

  • mtp is the optimized solution, where the pipeline (multi-threaded) is executed in subprocess.

The baseline can process around 2.4 batches per second. The headspace analysis suggests the maximum performance we can get is around 4.2.

This suggests that there is enough space for data loading improvement, so we tried SPDL with multithreading. To our surprise, the speed dropped to 1.2 batches per second.

Inconsistent Performance

What confused us was that the other performance metrics from model part were not consistent with the overall performance drop. The following plots are the average time for backward path and optimizer step.

We did not make any change to model architecture or loss, when we swapped the data loader. The backward path and the optimizer step appear to be faster than the baseline. However, since mt run is overall slower, this suggests that other model computation part is slower for mt run. (We do not have breakdown for forward path.) We can also see that the mt run shows spiky behavior than the others.

Noisy Neighbour and multiprocessing

After many failed attempt of resolving this, we suspected this could be due to the Noisy Neighbour, even though the CPU utilization of mt run is a little above 20%, whereas the baseline run uses more than 60%. (PyTorch DataLoader uses multiprocessing in very inefficient manner.)

The core issue of the noisy neighbour is that CPU cannot launch the GPU kernel at timely manner. The CPU task scheduling is handled by the OS, and there is a great deal in this topic, but what we can do with a little bit of effort was to move the pipeline parallelism out of the main process and execute it in a dedicated subprocess.

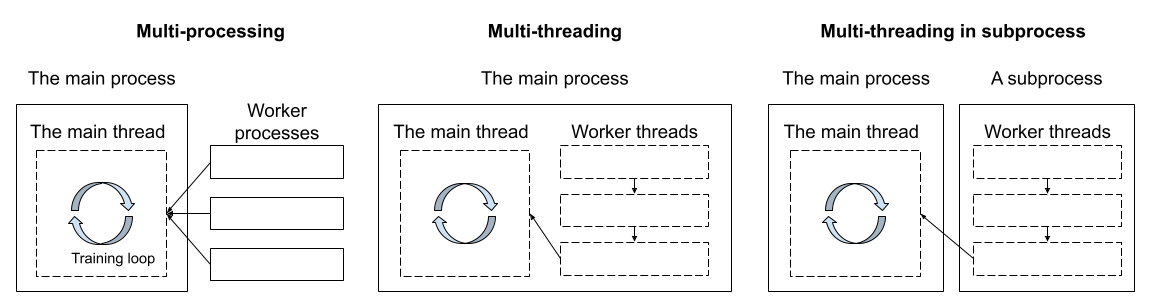

The following figure illustrates this.

../_images/parallelism_architecture.png

It turned out that this multi-threading in subprocess (mtp) is highly effective. It consumed a little bit more CPU resource (~26%) than simple mt (~20%), but it was faster, and no spiky behaviour was observed.
