Introduction to ClientSDK

ClientSDK is a comprehensive toolbox designed to facilitate control and interaction with Aria Gen2 devices. It is part of the Aria Research Kit and provides a set of libraries, utilities, and example code to streamline device management, authentication, recording, and streaming.

Key Features​

  • Device Management: Core classes and utilities for connecting to, authenticating, and controlling Aria Gen2 devices
  • Streaming Support: Components for starting and managing data streams, including on-device machine perception data (VIO, hand pose, and eye gaze) and other sensor data
  • Recording Support: Components for starting and managing recording on-device
  • Security: Built-in support for streaming certificates and security options
  • Python & CLI Tools: Includes Python SDK and command-line utilities for scripting and automation
  • Example Code: Ready-to-use examples to help developers get started quickly

Prerequisites​

Before getting started, ensure you have:

  • Hardware: Aria Gen2 device
  • Mobile App: Aria Companion App (installed and paired with your device)
  • Connection: USB cable for device-to-PC connection

Supported Platforms​

OS / PlatformOS / Distro DetailsAria Gen2 Support (projectaria-tools ≥2.0)Supported Python Versions
Linux (x64)Fedora 40/41; Ubuntu 22.04 LTS (jammy) / 24.04 LTS ( Noble Numbat)✅ Supported3.10 – 3.12
macOS (Apple Silicon / ARM64)macOS 14+ (Sonoma or newer) on M1/M2/M3🚧 Planned3.10 – 3.12
macOS (Intel)macOS 13+ (Ventura or newer)🚧 Planned3.10 – 3.12
Windows (x64)MSVC 2019/2022🚧 Planned3.10 – 3.12
Ubuntu 22.04 Known Issue

If you encounter a GLIBCXX_3.4.31 not found error when running CLI commands on Ubuntu 22.04, you'll need to update your C++ standard library. See the GLIBCXX troubleshooting guide for the solution.

Installation​

Step 1: Install Python​

To use ClientSDK, you'll need Python 3.10 - 3.12.

Step 2: Create a Virtual Environment​

rm -rf $HOME/projectaria_gen2_python_env
python3 -m venv $HOME/projectaria_gen2_python_env
source $HOME/projectaria_gen2_python_env/bin/activate

Step 3: Install ClientSDK Python Package​

pip install projectaria-client-sdk==2.0.0

Device Authentication​

You need to authenticate your device with your PC to allow secure connection via USB. Before proceeding, ensure you have paired the device with your mobile Companion App.

Step 1: Verify Device Setup​

After setting up the device with the Companion App, connect your device via USB and run the following command to ensure the device can be reached:

aria_doctor
info

This step opens the necessary ports on your PC for device discovery and configures your system to allow unblocked internet connection.

Step 2: Check Device Connection​

Verify the device connection to the PC via USB network interface:

# Connect device to the computer and check if the device appears
aria_gen2 device list

# Expected output
[AriaGen2Cli:App][INFO]: 1M0YDB5H7B0020
warning

If you cannot see your device listed in the terminal, please visit the troubleshooting page for help.

Step 3: Authenticate Device​

Authenticate your device to this PC to start using ClientSDK:

# Authenticate device to connect with the PC
aria_gen2 auth pair

# Expected output
[AriaGen2SDK:DeviceClient][INFO]: Client hash is: f30a36a9f3842bd3fc16c75b525.... please check against the companion app pairing request
[AriaGen2Cli:App][INFO]: Waiting for authentication approval on your mobile Companion App...
[AriaGen2Cli:App][INFO]: Successfully authenticated the device

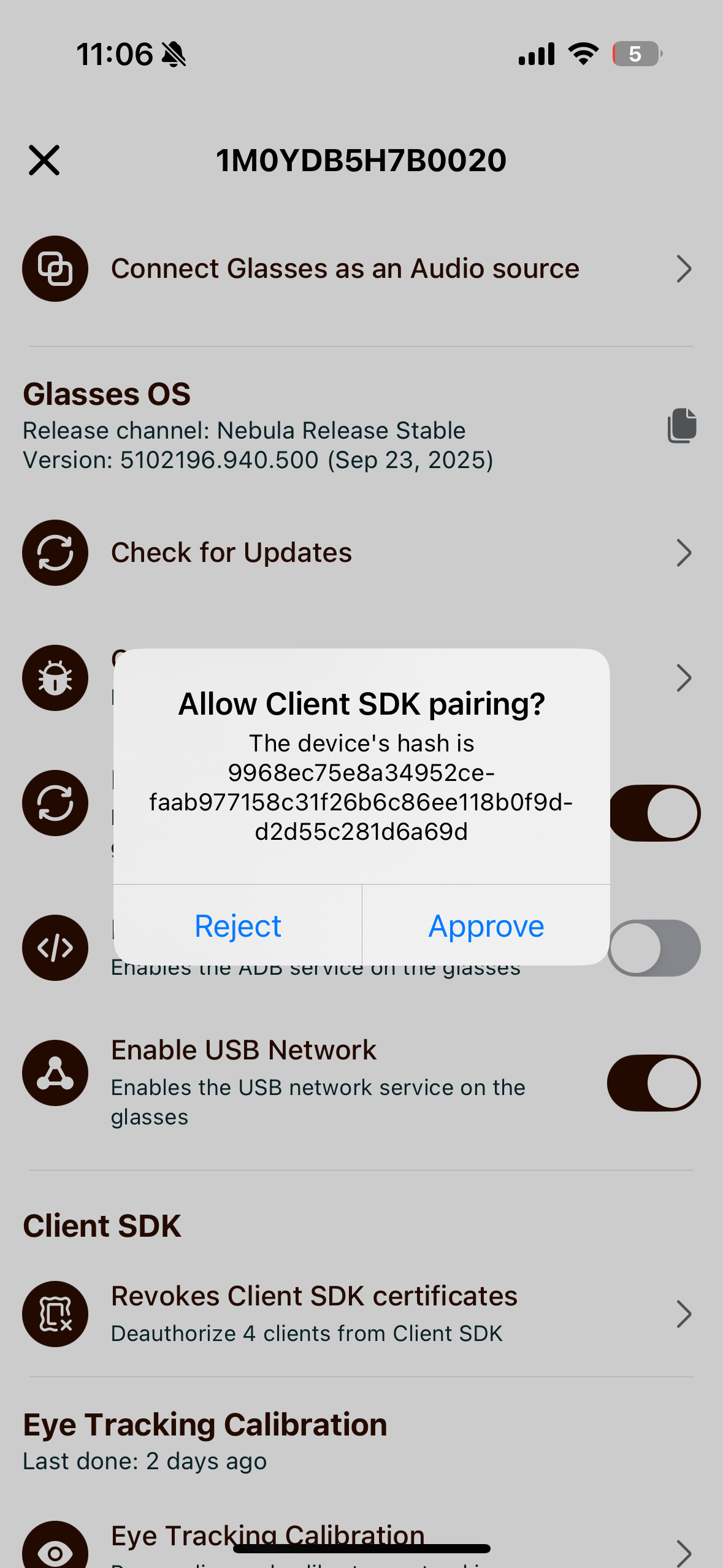

You will need to approve the authentication from your mobile Companion App to allow the connection, as shown here:

Docusaurus themed imageDocusaurus themed image
warning

If you cannot see the authentication request in your Companion App, please visit the troubleshooting page for help.

Step 4: Verify Authentication​

Once authenticated, you can check your authentication status using the command below:

# Check authentication status
aria_gen2 auth check

# Expected output
[AriaGen2Cli:App][INFO]: Setting up connection to device ...
[AriaGen2Cli:App][INFO]: Connected to device 1M0YDB5H7B0020
[AriaGen2Cli:App][INFO]: Device 1M0YDB5H7B0020 is successfully authenticated.
tip

You only need to authenticate once per device and PC combination.

Troubleshooting Connection and Authentication​

If you're experiencing issues connecting to your device or authenticating, try the following solutions:

Device Not Detected​

If your device is not showing up when running aria_gen2 device list, follow these steps:

1. Enable Ports Using aria_doctor​

Run aria_doctor to configure your system and enable the necessary ports:

aria_doctor

This command will:

  • Open required ports on your PC for device discovery
  • Configure your system to allow proper USB Ethernet connection
  • Set up internet access when connected via USB
info

If you cannot connect to the internet when connected to the device via USB, running aria_doctor will typically resolve this issue.

2. Check USB Network in Companion App​

Ensure USB network is enabled in the Companion App:

  1. Open the Aria Companion App on your mobile device
  2. Navigate to your paired device settings
  3. Verify that USB Network is toggled ON
  4. If it's off, enable it and reconnect the USB cable
tip

The USB Network toggle must be enabled for the device to communicate with your PC over USB.

3. Update USB Ethernet Security Settings​

When streaming via USB, the USB connection appears as an Ethernet configuration. You may need to adjust the security settings for this connection:

Linux:

  1. Check network connections with nmcli device status
  2. Look for a new USB or Ethernet device
  3. Ensure NetworkManager is managing the connection
  4. In Security tab, disable 802-1x Security for the USB Network

4. Disable VPN​

Your local PC may be connected to a VPN that blocks the connection. VPNs can interfere with the USB network interface used by the device.

Steps to resolve:

  1. Disconnect from any active VPN connections
  2. Run aria_gen2 device list again to check if the device is detected
  3. If streaming, restart the streaming viewer after disabling VPN
# After disabling VPN, verify device connection
aria_gen2 device list
warning

Some corporate VPNs may automatically reconnect. You may need to temporarily disable auto-connect features while working with the device.

Authentication Issues​

If authentication is failing or you cannot see the authentication request in the Companion App:

1. Verify Device Connection​

Ensure the device is properly connected and detected:

# Check if device is listed
aria_gen2 device list

# If not listed, run aria_doctor
aria_doctor

2. Check Companion App Connection​

  • Ensure the Companion App is running on your mobile device
  • Verify the device is paired with the Companion App
  • Check that your mobile device has an active internet connection
  • Make sure the Companion App is running in the foreground

3. Retry Authentication​

# Stop any existing authentication attempts
# Press Ctrl+C if a command is hanging

# Retry authentication
aria_gen2 auth pair

4. Reset Connection​

If authentication continues to fail, try resetting the connection:

# Disconnect and reconnect the USB cable
# Wait a few seconds after reconnecting

# Run aria_doctor again
aria_doctor

# Check device connection
aria_gen2 device list

# Retry authentication
aria_gen2 auth pair

Additional Troubleshooting Steps​

If you're still experiencing issues:

  1. Try a Different USB Port: Use a different USB port on your computer, preferably USB 3.0+
  2. Try a Different USB Cable: Use a high-quality USB cable that supports data transfer
  3. Restart the Device: Power off and restart your Aria Gen2 device
  4. Restart Your Computer: Sometimes a system restart can resolve network configuration issues
  5. Check Device Battery: Ensure your device has sufficient battery charge
  6. Update ClientSDK: Ensure you have the latest version of the ClientSDK installed
# Update ClientSDK to the latest version
pip install --upgrade projectaria-client-sdk

For more detailed troubleshooting, visit the troubleshooting page.

Available CLI Controls​

The ClientSDK provides a powerful CLI to control your Aria Gen2 device. You can use the packaged CLI to:

  • Recording: Control the device to start, stop, list, and download recordings in VRS format
  • Streaming: Control the device to start and stop streaming
  • Device: General device controls including obtaining device information, connecting to Wi-Fi, sending text-to-speech, and more

For detailed instructions and command reference, refer to the Technical Specs page.

Next Steps​

Now that you have the ClientSDK installed and your device authenticated, you can:

  1. Explore the Recording guide to learn how to capture data
  2. Check out the Streaming documentation to stream data in real-time
  3. Visit the Technical Specs for comprehensive CLI command reference
  4. Review the Python SDK API Reference for detailed Python SDK API documentation
