Benchmark tarfile

Benchmark script for iter_tarfile function.

This script benchmarks the performance of spdl.io.iter_tarfile() against Python’s built-in tarfile module using multi-threading. Two types of inputs are tested for spdl.io.iter_tarfile(). Byte string and a file-like object returns byte string by chunk.

The benchmark:

1. Creates test tar archives with various numbers of files

2. Runs both implementations with different thread counts

3. Measures queries per second (QPS) for each configuration

4. Plots the results comparing the three implementations

Example

$ numactl --membind 0 --cpubind 0 python benchmark_tarfile.py --output iter_tarfile_benchmark_results.csv
# Plot results
$ python plot_tar_benchmark.py --input iter_tarfile_benchmark_results.csv --output wav_benchmark_plot.png
# Plot results without load_wav
$ python plot_tar_benchmark.py --input iter_tarfile_benchmark_results.csv --output wav_benchmark_plot_2.png --filter '4. SPDL iter_tarfile (bytes w/o convert)'

Result

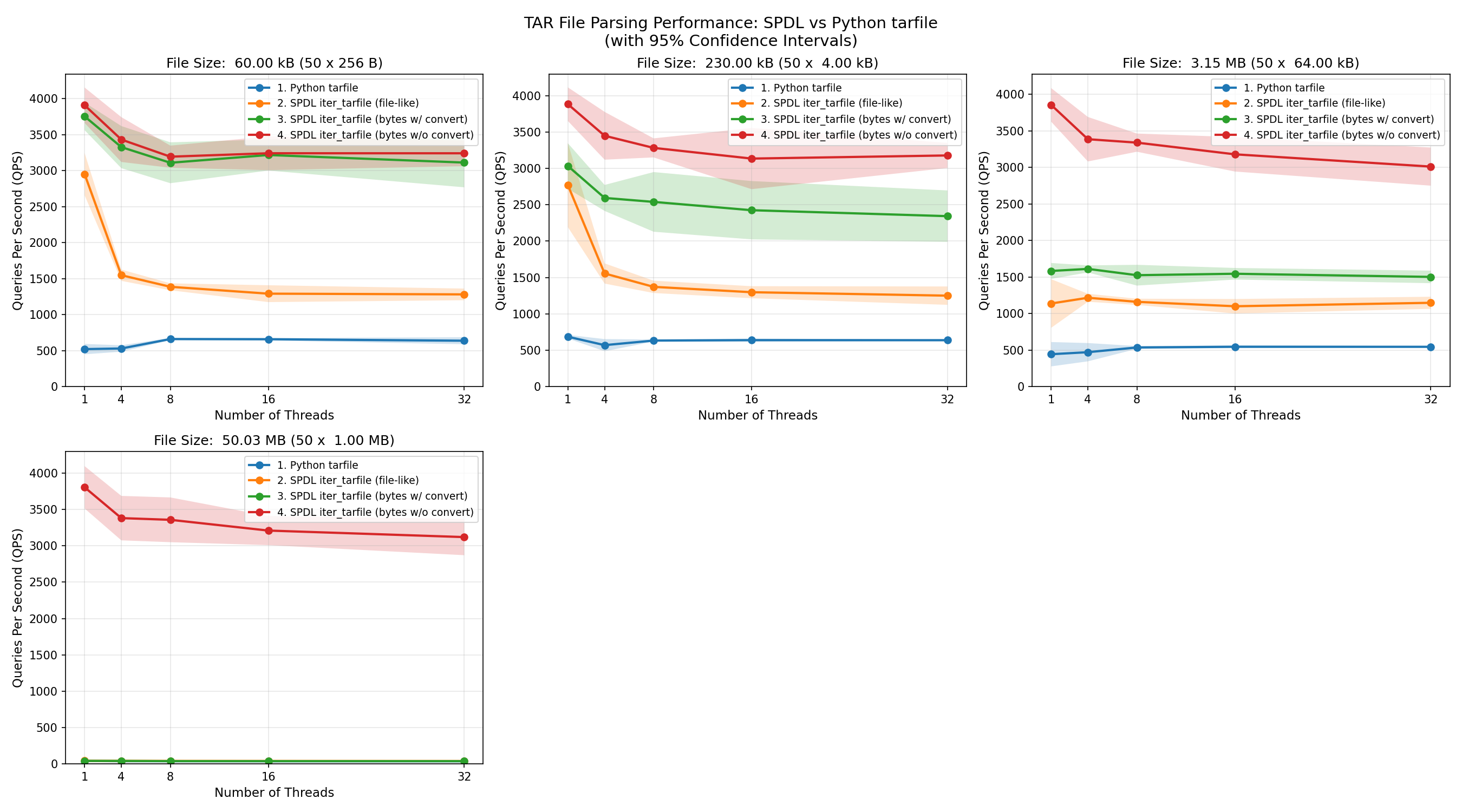

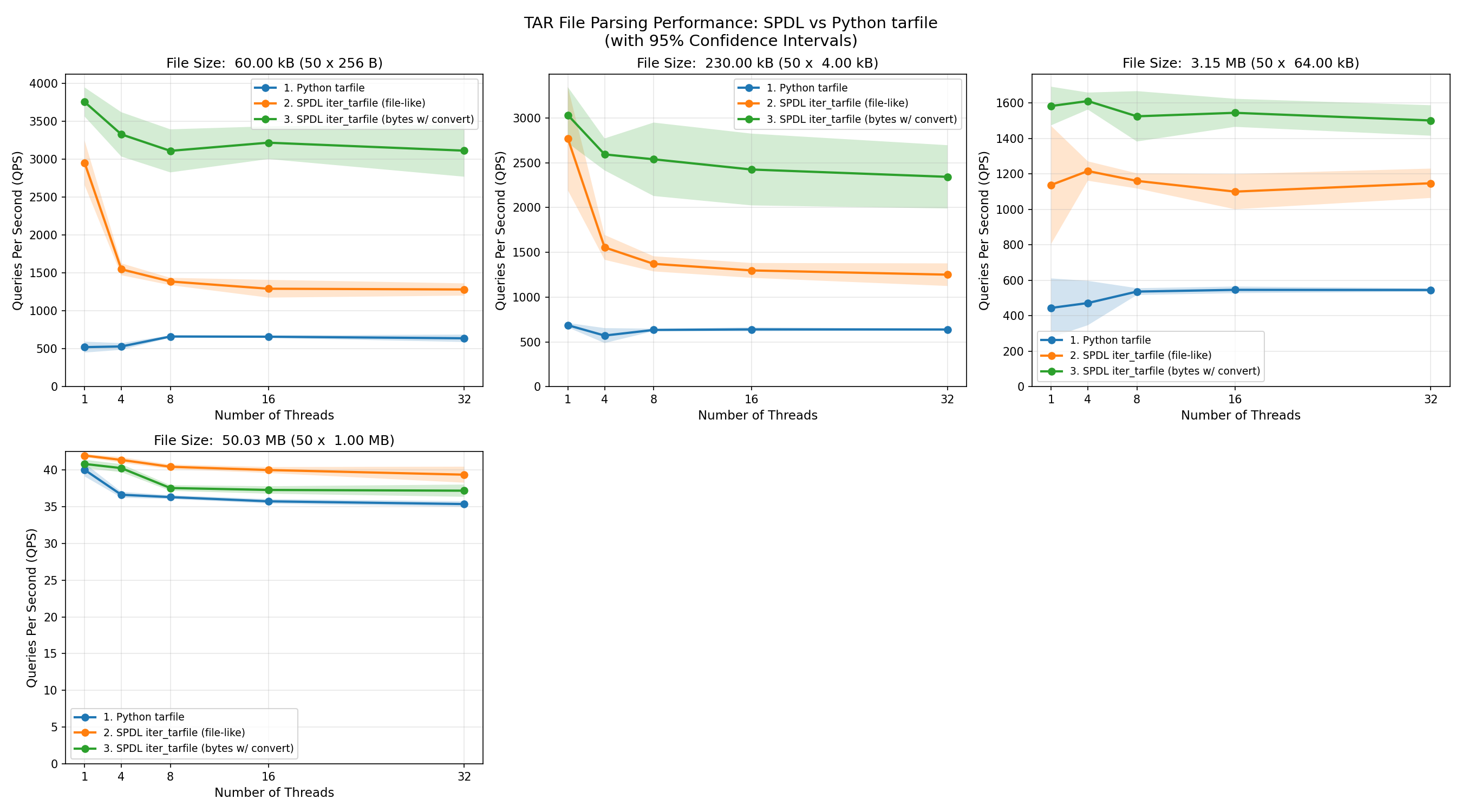

The following plot shows the QPS (measured by the number of files processed) of each functions with different file size.

The spdl.io.iter_tarfile() function processes data fastest when the input is a byte string. Its performance is consistent across different file sizes. This is because, when the entire TAR file is loaded into memory as a contiguous array, the function only needs to read the header and return the address of the corresponding data (note that iter_tarfile() returns a memory view when the input is a byte string). Since reading the header is very fast, most of the time is spent creating memory view objects while holding the GIL (Global Interpreter Lock). As a result, the speed of loading files decreases as more threads are used.

When the input data type is switched from a byte string to a file-like object, the performance of spdl.io.iter_tarfile() is also affected by the size of the input data. This is because data is processed incrementally, and for each file in the TAR archive, a new byte string object is created. The implementation tries to request the exact amount of bytes needed, but file-like objects do not guarantee that they return the requested length, instead, they return at most the requested number of bytes. Therefore, many intermediate byte string objects must be created. As the file size grows, it takes longer to process the data. Since the GIL must be locked while byte strings are created, performance degrades as more threads are used. At some point, the performance becomes similar to Python’s built-in tarfile module, which is a pure-Python implementation and thus holds the GIL almost entirely.

Source

Source

Click here to see the source.

#!/usr/bin/env python3
# Copyright (c) Meta Platforms, Inc. and affiliates.
# All rights reserved.
#
# This source code is licensed under the BSD-style license found in the
# LICENSE file in the root directory of this source tree.

# pyre-unsafe

"""Benchmark script for iter_tarfile function.

This script benchmarks the performance of :py:func:`spdl.io.iter_tarfile` against
Python's built-in ``tarfile`` module using multi-threading.
Two types of inputs are tested for  :py:func:`spdl.io.iter_tarfile`.
Byte string and a file-like object returns byte string by chunk.

The benchmark:

1. Creates test tar archives with various numbers of files
2. Runs both implementations with different thread counts
3. Measures queries per second (QPS) for each configuration
4. Plots the results comparing the three implementations

**Example**

.. code-block:: shell

   $ numactl --membind 0 --cpubind 0 python benchmark_tarfile.py --output iter_tarfile_benchmark_results.csv
   # Plot results
   $ python plot_tar_benchmark.py --input iter_tarfile_benchmark_results.csv --output wav_benchmark_plot.png
   # Plot results without load_wav
   $ python plot_tar_benchmark.py --input iter_tarfile_benchmark_results.csv --output wav_benchmark_plot_2.png --filter '4. SPDL iter_tarfile (bytes w/o convert)'

**Result**

The following plot shows the QPS (measured by the number of files processed) of each
functions with different file size.

.. image:: ../../_static/data/example_benchmark_tarfile.png

.. image:: ../../_static/data/example_benchmark_tarfile_2.png

The :py:func:`spdl.io.iter_tarfile` function processes data fastest when the input is a byte
string.
Its performance is consistent across different file sizes.
This is because, when the entire TAR file is loaded into memory as a contiguous array,
the function only needs to read the header and return the address of the corresponding data
(note that :py:func:`~spdl.io.iter_tarfile` returns a memory view when the input is a byte
string).
Since reading the header is very fast, most of the time is spent creating memory view objects
while holding the GIL (Global Interpreter Lock).
As a result, the speed of loading files decreases as more threads are used.

When the input data type is switched from a byte string to a file-like object,
the performance of :py:func:`spdl.io.iter_tarfile` is also affected by the size of
the input data.
This is because data is processed incrementally, and for each file in the TAR archive,
a new byte string object is created.
The implementation tries to request the exact amount of bytes needed, but file-like objects
do not guarantee that they return the requested length,
instead, they return at most the requested number of bytes.
Therefore, many intermediate byte string objects must be created.
As the file size grows, it takes longer to process the data.
Since the GIL must be locked while byte strings are created,
performance degrades as more threads are used.
At some point, the performance becomes similar to Python's built-in ``tarfile`` module,
which is a pure-Python implementation and thus holds the GIL almost entirely.
"""

__all__ = [
    "BenchmarkResult",
    "benchmark",
    "create_test_tar",
    "iter_tarfile_builtin",
    "main",
    "save_results_to_csv",
    "process_tar_builtin",
    "process_tar_spdl",
    "process_tar_spdl_filelike",
    "run_benchmark",
]

import argparse
import csv
import io
import logging
import sys
import tarfile
import time
from collections.abc import Callable, Iterator
from concurrent.futures import as_completed, ThreadPoolExecutor
from dataclasses import dataclass
from functools import partial

import numpy as np
import spdl.io

_LG = logging.getLogger(__name__)


def _get_python_info() -> tuple[str, bool]:
    """Get Python version and free-threaded ABI information.

    Returns:
        Tuple of (python_version, is_free_threaded)
    """
    python_version = (
        f"{sys.version_info.major}.{sys.version_info.minor}.{sys.version_info.micro}"
    )
    # Check if Python is running with free-threaded ABI (PEP 703)
    # _is_gil_enabled is only available in Python 3.13+
    try:
        is_free_threaded = sys._is_gil_enabled()  # pyre-ignore[16]
    except AttributeError:
        is_free_threaded = False
    return python_version, is_free_threaded


def iter_tarfile_builtin(tar_data: bytes) -> Iterator[tuple[str, bytes]]:
    """Iterate over TAR file using Python's built-in ``tarfile`` module.

    Args:
        tar_data: TAR archive as bytes.

    Yields:
        Tuple of ``(filename, content)`` for each file in the archive.
    """
    with tarfile.open(fileobj=io.BytesIO(tar_data), mode="r") as tar:
        for member in tar.getmembers():
            if member.isfile():
                file_obj = tar.extractfile(member)
                if file_obj:
                    content = file_obj.read()
                    yield member.name, content


def process_tar_spdl(tar_data: bytes, convert: bool) -> int:
    """Process TAR archive using :py:func:`spdl.io.iter_tarfile`.

    Args:
        tar_data: TAR archive as bytes.

    Returns:
        Number of files processed.
    """
    count = 0
    if convert:
        for _, content in spdl.io.iter_tarfile(tar_data):
            bytes(content)
            count += 1
        return count
    else:
        for _ in spdl.io.iter_tarfile(tar_data):
            count += 1
        return count


def process_tar_builtin(tar_data: bytes) -> int:
    """Process TAR archive using Python's built-in ``tarfile`` module.

    Args:
        tar_data: TAR archive as bytes.

    Returns:
        Number of files processed.
    """
    count = 0
    for _ in iter_tarfile_builtin(tar_data):
        count += 1
    return count


def process_tar_spdl_filelike(tar_data: bytes) -> int:
    """Process TAR archive using :py:func:`spdl.io.iter_tarfile` with file-like object.

    Args:
        tar_data: TAR archive as bytes.

    Returns:
        Number of files processed.
    """
    count = 0
    file_like = io.BytesIO(tar_data)
    for _ in spdl.io.iter_tarfile(file_like):  # pyre-ignore[6]
        count += 1
    return count


def benchmark(
    func,
    tar_data: bytes,
    num_iterations: int,
    num_threads: int,
    num_runs: int = 5,
) -> tuple[int, float, float, float]:
    """Benchmark function with specified number of threads.

    Runs multiple benchmark iterations and calculates 95% confidence intervals.

    Args:
        func: Function to benchmark (e.g., ``process_tar_spdl`` or ``process_tar_builtin``).
        tar_data: TAR archive as bytes.
        num_iterations: Number of iterations to run per benchmark run.
        num_threads: Number of threads to use.
        num_runs: Number of benchmark runs to perform for confidence interval calculation.
            Defaults to 5.

    Returns:
        Tuple of ``(total_files_processed, qps_mean, qps_lower_ci, qps_upper_ci)``.
    """
    qps_samples = []
    last_total_count = 0

    with ThreadPoolExecutor(max_workers=num_threads) as exe:
        # Warm-up phase: run a few iterations to warm up the executor
        warmup_futures = [exe.submit(func, tar_data) for _ in range(10 * num_threads)]
        for future in as_completed(warmup_futures):
            _ = future.result()

        # Run multiple benchmark iterations
        for _ in range(num_runs):
            t0 = time.monotonic()
            futures = [exe.submit(func, tar_data) for _ in range(num_iterations)]
            total_count = 0
            for future in as_completed(futures):
                total_count += future.result()
            elapsed = time.monotonic() - t0

            qps = num_iterations / elapsed
            qps_samples.append(qps)
            last_total_count = total_count

    # Calculate mean and 95% confidence interval
    qps_mean = sum(qps_samples) / len(qps_samples)
    qps_std = np.std(qps_samples, ddof=1)
    # Using t-distribution critical value for 95% CI
    # For small samples (n=5), t-value ≈ 2.776
    t_value = 2.776 if num_runs == 5 else 2.0
    margin = t_value * qps_std / (num_runs**0.5)
    qps_lower_ci = qps_mean - margin
    qps_upper_ci = qps_mean + margin

    return last_total_count, qps_mean, qps_lower_ci, qps_upper_ci


def _size_str(n: int) -> str:
    if n < 1024:
        return f"{n} B"
    if n < 1024 * 1024:
        return f"{n / 1024: .2f} kB"
    if n < 1024 * 1024 * 1024:
        return f"{n / (1024 * 1024): .2f} MB"
    return f"{n / (1024 * 1024 * 1024): .2f} GB"


@dataclass
class BenchmarkResult:
    """Single benchmark result for a specific configuration."""

    function_name: str
    "Name of the function being benchmarked."
    tar_size: int
    "Size of the TAR archive in bytes."
    file_size: int
    "Size of each file in the TAR archive in bytes."
    num_files: int
    "Number of files in the TAR archive."
    num_threads: int
    "Number of threads used for this benchmark."
    num_iterations: int
    "Number of iterations performed."
    qps_mean: float
    "Mean queries per second (QPS)."
    qps_lower_ci: float
    "Lower bound of 95% confidence interval for QPS."
    qps_upper_ci: float
    "Upper bound of 95% confidence interval for QPS."
    total_files_processed: int
    "Total number of files processed during the benchmark."
    python_version: str
    "Python version used for the benchmark."
    free_threaded: bool
    "Whether Python is running with free-threaded ABI (PEP 703)."


def create_test_tar(num_files: int, file_size: int) -> bytes:
    """Create a TAR archive in memory with specified number of files.

    Args:
        num_files: Number of files to include in the archive.
        file_size: Size of each file in bytes.

    Returns:
        TAR archive as bytes.
    """
    tar_buffer = io.BytesIO()
    with tarfile.open(fileobj=tar_buffer, mode="w") as tar:
        for i in range(num_files):
            filename = f"file_{i:06d}.txt"
            content = b"1" * file_size
            info = tarfile.TarInfo(name=filename)
            info.size = len(content)
            tar.addfile(info, io.BytesIO(content))
    tar_buffer.seek(0)
    return tar_buffer.getvalue()


def run_benchmark(
    configs: list[tuple[str, Callable[[bytes], int]]],
    num_files: int,
    file_sizes: list[int],
    num_iterations: int,
    thread_counts: list[int],
    num_runs: int = 5,
) -> list[BenchmarkResult]:
    """Run benchmark comparing SPDL and built-in implementations.

    Tests both :py:func:`spdl.io.iter_tarfile` (with bytes and file-like inputs)
    and Python's built-in ``tarfile`` module.

    Args:
        num_files: Number of files in the test TAR archive.
        file_sizes: List of file sizes to test (in bytes).
        num_iterations: Number of iterations for each thread count.
        thread_counts: List of thread counts to test.
        num_runs: Number of runs to perform for confidence interval calculation.
            Defaults to 5.

    Returns:
        List of :py:class:`BenchmarkResult`, one for each configuration tested.
    """

    results: list[BenchmarkResult] = []

    for file_size in file_sizes:
        for func_name, func in configs:
            tar_data = create_test_tar(num_files, file_size)
            _LG.info(
                "TAR size: %s (%d x %s), '%s'",
                _size_str(len(tar_data)),
                num_files,
                _size_str(file_size),
                func_name,
            )

            for num_threads in thread_counts:
                total_count, qps_mean, qps_lower_ci, qps_upper_ci = benchmark(
                    func, tar_data, num_iterations, num_threads, num_runs
                )

                margin = (qps_upper_ci - qps_lower_ci) / 2
                _LG.info(
                    "  Threads: %2d  QPS: %8.2f ± %.2f  (%.2f-%.2f, %d runs, %d files)",
                    num_threads,
                    qps_mean,
                    margin,
                    qps_lower_ci,
                    qps_upper_ci,
                    num_runs,
                    total_count,
                )

                python_version, free_threaded = _get_python_info()
                results.append(
                    BenchmarkResult(
                        function_name=func_name,
                        tar_size=len(tar_data),
                        file_size=file_size,
                        num_files=num_files,
                        num_threads=num_threads,
                        num_iterations=num_iterations,
                        qps_mean=qps_mean,
                        qps_lower_ci=qps_lower_ci,
                        qps_upper_ci=qps_upper_ci,
                        total_files_processed=total_count,
                        python_version=python_version,
                        free_threaded=free_threaded,
                    )
                )

    return results


def save_results_to_csv(
    results: list[BenchmarkResult],
    output_file: str = "benchmark_tarfile_results.csv",
) -> None:
    """Save benchmark results to a CSV file that Excel can open.

    Args:
        results: List of BenchmarkResult objects containing benchmark data
        output_file: Output file path for the CSV file
    """
    with open(output_file, "w", newline="") as csvfile:
        fieldnames = [
            "function_name",
            "tar_size",
            "file_size",
            "num_files",
            "num_threads",
            "num_iterations",
            "qps_mean",
            "qps_lower_ci",
            "qps_upper_ci",
            "total_files_processed",
            "python_version",
            "free_threaded",
        ]
        writer = csv.DictWriter(csvfile, fieldnames=fieldnames)

        writer.writeheader()
        for r in results:
            writer.writerow(
                {
                    "function_name": r.function_name,
                    "tar_size": r.tar_size,
                    "file_size": r.file_size,
                    "num_files": r.num_files,
                    "num_threads": r.num_threads,
                    "num_iterations": r.num_iterations,
                    "qps_mean": r.qps_mean,
                    "qps_lower_ci": r.qps_lower_ci,
                    "qps_upper_ci": r.qps_upper_ci,
                    "total_files_processed": r.total_files_processed,
                    "python_version": r.python_version,
                    "free_threaded": r.free_threaded,
                }
            )
    _LG.info("Results saved to %s", output_file)


def _parse_args() -> argparse.Namespace:
    parser = argparse.ArgumentParser(
        description="Benchmark iter_tarfile performance with multi-threading"
    )
    parser.add_argument(
        "--num-files",
        type=int,
        default=100,
        help="Number of files in the test TAR archive",
    )
    parser.add_argument(
        "--num-iterations",
        type=int,
        default=100,
        help="Number of iterations for each thread count",
    )
    parser.add_argument(
        "--output",
        type=str,
        default="iter_tarfile_benchmark_results.csv",
        help="Output path for the results",
    )
    parser.add_argument(
        "--log-level",
        type=str,
        default="INFO",
        choices=["DEBUG", "INFO", "WARNING", "ERROR"],
        help="Logging level",
    )

    return parser.parse_args()


def main() -> None:
    """Main entry point for the benchmark script.

    Parses command-line arguments, runs benchmarks, and generates plots.
    """

    args = _parse_args()

    logging.basicConfig(
        level=getattr(logging, args.log_level),
        format="%(asctime)s [%(levelname).1s]: %(message)s",
    )

    thread_counts = [1, 4, 8, 16, 32]
    file_sizes = [2**8, 2**12, 2**16, 2**20]

    _LG.info("Starting benchmark with configuration:")
    _LG.info("  Number of files: %d", args.num_files)
    _LG.info("  File sizes: %s bytes", file_sizes)
    _LG.info("  Iterations per thread count: %d", args.num_iterations)
    _LG.info("  Thread counts: %s", thread_counts)

    configs: list[tuple[str, Callable[[bytes], int]]] = [
        ("1. Python tarfile", process_tar_builtin),
        ("2. SPDL iter_tarfile (file-like)", process_tar_spdl_filelike),
        (
            "3. SPDL iter_tarfile (bytes w/ convert)",
            partial(process_tar_spdl, convert=True),
        ),
        (
            "4. SPDL iter_tarfile (bytes w/o convert)",
            partial(process_tar_spdl, convert=False),
        ),
    ]

    results = run_benchmark(
        configs,
        num_files=args.num_files,
        file_sizes=file_sizes,
        num_iterations=args.num_iterations,
        thread_counts=thread_counts,
    )

    # Save results to CSV
    save_results_to_csv(results, args.output)

    _LG.info(
        "Benchmark complete. To generate plots, run: "
        "python plot_tar_benchmark.py --input %s --output %s",
        args.output,
        args.output.replace(".csv", ".png"),
    )


if __name__ == "__main__":
    main()

Functions

Functions

benchmark(func, tar_data: bytes, num_iterations: int, num_threads: int, num_runs: int = 5) → tuple[int, float, float, float]

Benchmark function with specified number of threads.

Runs multiple benchmark iterations and calculates 95% confidence intervals.

Parameters:

• func – Function to benchmark (e.g., process_tar_spdl or process_tar_builtin).

• tar_data – TAR archive as bytes.

• num_iterations – Number of iterations to run per benchmark run.

• num_threads – Number of threads to use.

• num_runs – Number of benchmark runs to perform for confidence interval calculation. Defaults to 5.

Returns:

Tuple of (total_files_processed, qps_mean, qps_lower_ci, qps_upper_ci).

create_test_tar(num_files: int, file_size: int) → bytes

Create a TAR archive in memory with specified number of files.

Parameters:

• num_files – Number of files to include in the archive.

• file_size – Size of each file in bytes.

Returns:

TAR archive as bytes.

iter_tarfile_builtin(tar_data: bytes) → Iterator[tuple[str, bytes]]

Iterate over TAR file using Python’s built-in tarfile module.

Parameters:

tar_data – TAR archive as bytes.

Yields:

Tuple of (filename, content) for each file in the archive.

main() → None

Main entry point for the benchmark script.

Parses command-line arguments, runs benchmarks, and generates plots.

save_results_to_csv(results: list[BenchmarkResult], output_file: str = 'benchmark_tarfile_results.csv') → None

Save benchmark results to a CSV file that Excel can open.

Parameters:

• results – List of BenchmarkResult objects containing benchmark data

• output_file – Output file path for the CSV file

process_tar_builtin(tar_data: bytes) → int

Process TAR archive using Python’s built-in tarfile module.

Parameters:

tar_data – TAR archive as bytes.

Returns:

Number of files processed.

process_tar_spdl(tar_data: bytes, convert: bool) → int

Process TAR archive using spdl.io.iter_tarfile().

Parameters:

tar_data – TAR archive as bytes.

Returns:

Number of files processed.

process_tar_spdl_filelike(tar_data: bytes) → int

Process TAR archive using spdl.io.iter_tarfile() with file-like object.

Parameters:

tar_data – TAR archive as bytes.

Returns:

Number of files processed.

run_benchmark(configs: list[tuple[str, Callable[[bytes], int]]], num_files: int, file_sizes: list[int], num_iterations: int, thread_counts: list[int], num_runs: int = 5) → list[BenchmarkResult]

Run benchmark comparing SPDL and built-in implementations.

Tests both spdl.io.iter_tarfile() (with bytes and file-like inputs) and Python’s built-in tarfile module.

Parameters:

• num_files – Number of files in the test TAR archive.

• file_sizes – List of file sizes to test (in bytes).

• num_iterations – Number of iterations for each thread count.

• thread_counts – List of thread counts to test.

• num_runs – Number of runs to perform for confidence interval calculation. Defaults to 5.

Returns:

List of BenchmarkResult, one for each configuration tested.

Classes

Classes

class BenchmarkResult(function_name: str, tar_size: int, file_size: int, num_files: int, num_threads: int, num_iterations: int, qps_mean: float, qps_lower_ci: float, qps_upper_ci: float, total_files_processed: int, python_version: str, free_threaded: bool)

Single benchmark result for a specific configuration.

file_size: int

Size of each file in the TAR archive in bytes.

free_threaded: bool

Whether Python is running with free-threaded ABI (PEP 703).

function_name: str

Name of the function being benchmarked.

num_files: int

Number of files in the TAR archive.

num_iterations: int

Number of iterations performed.

num_threads: int

Number of threads used for this benchmark.

python_version: str

Python version used for the benchmark.

qps_lower_ci: float

Lower bound of 95% confidence interval for QPS.

qps_mean: float

Mean queries per second (QPS).

qps_upper_ci: float

Upper bound of 95% confidence interval for QPS.

tar_size: int

Size of the TAR archive in bytes.

total_files_processed: int

Total number of files processed during the benchmark.
