Lifecycle & Update Loop

AI4AnimationPy follows a game-engine-style lifecycle with distinct phases for initialization, updating, rendering, and GUI. Understanding this lifecycle is essential for writing correct programs.

---

Program Template

Every program follows this pattern:

from ai4animation import AI4Animation


class Program:
    def Start(self):
        # Called once at initialization
        # Create entities, load models, set up data
        pass

    def Standalone(self):
        # Called once after Start (standalone only)
        # Configure camera, create GUI elements
        pass

    def Update(self):
        # Called every frame
        # Game logic, animation, input handling
        pass

    def Draw(self):
        # Called every frame (standalone only, inside render pass)
        # Debug visualization, shape drawing
        pass

    def GUI(self):
        # Called every frame (standalone only, after render)
        # UI overlays, handles, text
        pass


if __name__ == "__main__":
    AI4Animation(Program(), mode=AI4Animation.Mode.STANDALONE)

---

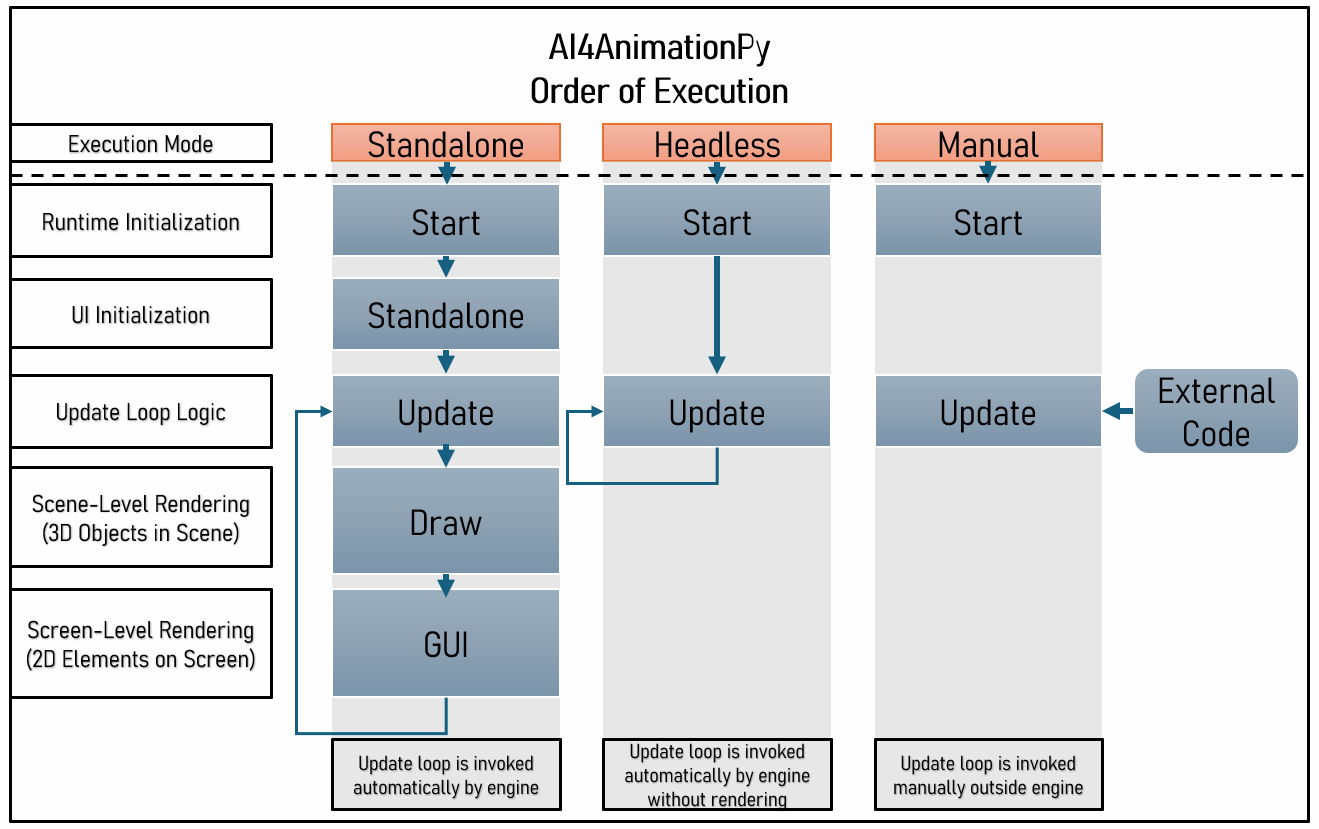

Lifecycle Phases

1. Initialization

When AI4Animation(program, mode) is called:

1. A Scene is created
2. If mode == STANDALONE, the Standalone renderer is loaded (Raylib window, camera, render pipeline)
3. program.Start() is called — set up entities, components, and data here
4. program.Standalone() is called (standalone mode only) — configure GUI, camera targets

2. Update

Called every frame before rendering:

AI4Animation.__UPDATE__()
├── program.Update()      # Your game logic
└── scene.Update()        # Iterates all entities
    └── entity.Update()   # For each entity
        └── component.Update()  # For each attached component

Order: Your program's Update() runs first, then the scene updates all entities and their components.

3. Draw

Called every frame inside the render pass (standalone only):

AI4Animation.__DRAW__()
├── program.Draw()        # Your rendering code
└── scene.Draw()          # Iterates all entities
    └── entity.Draw()     # For each entity
        └── component.Draw()  # For each attached component

Use Draw() to render debug visualizations, shapes, lines, etc. via AI4Animation.Draw.

4. GUI

Called every frame after rendering (standalone only):

AI4Animation.__GUI__()
├── program.GUI()         # Your UI overlays
└── scene.GUI()           # Iterates all entities
    └── entity.GUI()      # For each entity
        └── component.GUI()  # For each attached component

Use GUI() for immediate-mode UI elements like sliders, buttons, text overlays.

---

Time

The Time module provides frame timing globals:

Property	Type	Description
Time.DeltaTime	float	Seconds elapsed since last frame
Time.TotalTime	float	Total seconds since engine start
Time.Timescale	float	Time multiplier (default: 1.0)

from ai4animation import Time

def Update(self):
    speed = 2.0
    distance = speed * Time.DeltaTime  # Frame-rate independent movement
    angle = 120 * Time.TotalTime       # Continuous rotation

Note

DeltaTime is pre-multiplied by Timescale. Set Time.Timescale = 0.5 to run at half speed.

---

Execution Modes

AI4AnimationPy supports three execution modes, selectable when creating the engine instance. Each mode determines how the update loop runs and whether rendering is enabled.

---

Standalone Mode

Windowed rendering via Raylib with a full deferred rendering pipeline.

from ai4animation import AI4Animation

class Program:
    def Start(self):
        pass
    def Update(self):
        pass
    def Draw(self):
        pass  # Called inside the render pass
    def GUI(self):
        pass  # Called after rendering for UI overlays

if __name__ == "__main__":
    AI4Animation(Program(), mode=AI4Animation.Mode.STANDALONE)

Characteristics:

• Opens a 1920×1080 window
• Runs the full render pipeline: deferred shading, shadow mapping, SSAO, bloom, FXAA
• Calls Draw() and GUI() every frame
• Camera, skinned mesh, and GUI systems are available
• Frame timing is driven by Raylib's GetFrameTime()

When to use: Development, visualization, debugging, demos.

---

Headless Mode

Infinite update loop without rendering. No window is created.

from ai4animation import AI4Animation

class Program:
    def Start(self):
        pass
    def Update(self):
        pass  # Called every iteration

if __name__ == "__main__":
    AI4Animation(Program(), mode=AI4Animation.Mode.HEADLESS)

Characteristics:

• No window or rendering
• Draw() and GUI() are never called
• Runs Update() in a tight loop as fast as possible
• Frame time is computed from wall-clock time

When to use: Server-side training, batch processing, data generation, CI/CD pipelines.

---

Manual Mode

Caller-controlled update timing. The engine does not run its own loop.

from ai4animation import AI4Animation

class Program:
    def Start(self):
        pass
    def Update(self):
        pass

engine = AI4Animation(Program(), mode=AI4Animation.Mode.MANUAL)

# Drive the update loop externally
for i in range(1000):
    AI4Animation.Update(deltaTime=1.0/60.0)

Characteristics:

• No automatic loop — you call AI4Animation.Update(deltaTime) yourself
• Full control over frame timing and step count
• No rendering (same as Headless in that regard)

When to use: Integration with external systems, custom simulation loops, Jupyter notebooks.

---

Standalone Renderer

When running in standalone mode, the engine creates:

• A Raylib window
• A Camera
• A RenderPipeline
• A Ground plane entity

The render loop sequence per frame:

1. GetFrameTime() → compute delta time
2. Update() → game logic + scene update
3. BeginDrawing() → start render pass
4. Draw() → custom rendering
5. GUI() → UI overlays
6. EndDrawing() → present frame
